Introducing the EVO-X Series

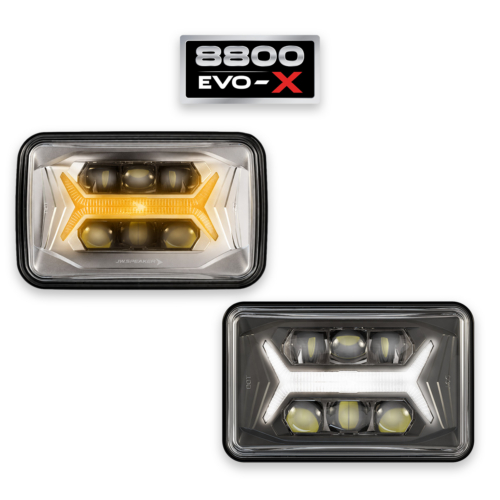

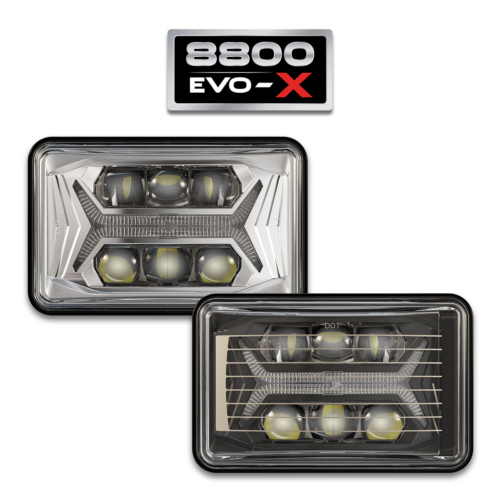

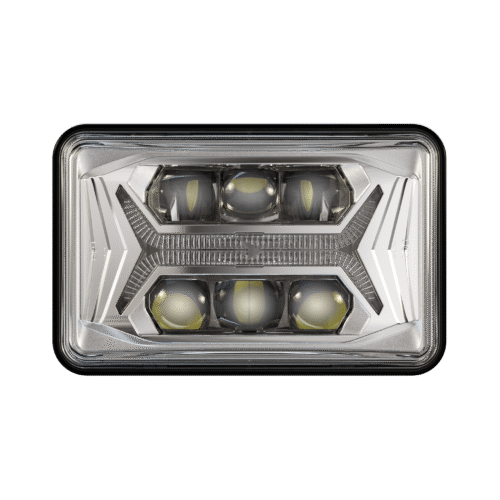

Model 8800 EVO-X Headlight

4″×6″ LED headlight delivering daylight level, street legal visibility with 5 in 1 functions for broad on road applications.

Overview

A high-performance LED headlight designed for 4″ x 6″ applications, the 8800 EVO X™ delivers daylight-level performance with modern styling in a compact format used across a wide range of vehicle platforms. Featuring the unmistakable “X” optic, the 8800 EVO X™ combines advanced lighting performance with a distinctive visual signature.

Built with a modular optic design, the 8800 EVO X™ simplifies vehicle integration across OEM programs and aftermarket upgrades. With H4 simple plug-and-play installation and full brightness at minimum voltage, no dimming as with halogen, the 8800 EVO X™ provides dependable illumination for real-world driving conditions.

Features

  • Daylight-level performance
  • Modular optic design
  • H4 simple plug-and-play
  • All forward lighting functions; 5 in 1
  • Industry-leading SmartHeat® technology helps prevent snow and ice buildup on the lens
  • Industry-leading J.W. Speaker Dual Burn®; low beam spread, high beam punch
  • Designed to perform in the harshest conditions
  • Full brightness at minimum voltage
  • Dual compliance – DOT & ECE (Direction indicator (DI) is not DOT compliant)
  • Buy American Act compliant

Street legal supporting DOT standards

DOT versions are for use in the U.S. DOT-compliant, guaranteeing the lights meet Section 108 requirements of the United States Federal Motor Vehicle Safety Standards. DOT compliance is clearly etched on the lens of the light.

Summary

The 8800 EVO X™ delivers extreme performance in a 4″ x 6″ LED headlight format designed for both OEM integration and aftermarket upgrades. Its modular optic design and H4 simple plug-and-play installation simplify vehicle integration across a broad range of applications.

With all forward lighting functions; 5 in 1, industry-leading SmartHeat® technology, and J.W. Speaker Dual Burn® optics delivering low beam spread with high beam punch, the 8800 EVO X™ provides dependable illumination for demanding on-road environments.

8800 EVO X™ – Extreme performance and daylight-level visibility in a proven 4″ x 6″ platform.

Applications
  • Agriculture
  • Automotive
  • Construction
  • Industrial
  • Mining
  • Motorcycle
  • Off-Road 4x4
  • Powersports
  • Specialty Vehicles
  • Truck & Bus
  • Commercial Truck
  • Material Handling
  • Railroad
This product meets one or more European regulatory standards. Please see the specification sheet for more details.This product meets one or more FMVSS 108 standards, including DOT and Transport Canada requirementsThis product is sealed to completely protect against the entry of dust and immersion in water up to a depth of 1 meter.This product is sealed to completely protect against the entry of dust and high-pressure/high-temperature jets of water in any direction.This product meets one or more Society of Automotive Engineers regulatory standards.
Share this Product
Specifications Dealer Locator
For California residents:
⚠️ WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov.
⚠️ AVERTISSEMENT: Cancer et effet nocif sur la reproduction - www.P65Warnings.ca.gov.

Part Numbers (Non-Heated)

  Part NumberDescriptionRetail PricingSpec Sheet

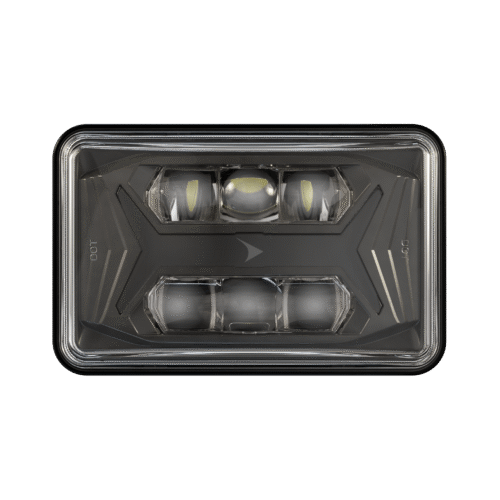

0562021 Part 0562021 12-24V DOT/ECE LED RHT Asymmetric Low Beam Headlight with Black BezelDownloadPDF
  ECE Reg 10, ECE Reg 149 - C, FMVSS 108 s10.1 (Table XIX), IEC IP67, IEC IP69K, SAE J1383

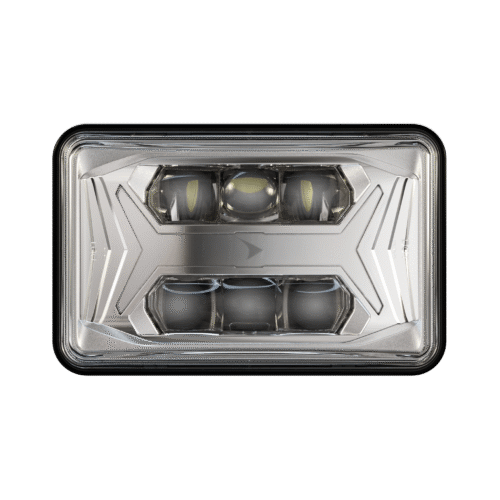

0562031 Part 0562031 12-24V DOT/ECE LED RHT Asymmetric Low Beam Headlight with Chrome BezelDownloadPDF
  ECE Reg 10, ECE Reg 149 - C, FMVSS 108 s10.1 (Table XIX), IEC IP67, IEC IP69K, SAE J1383

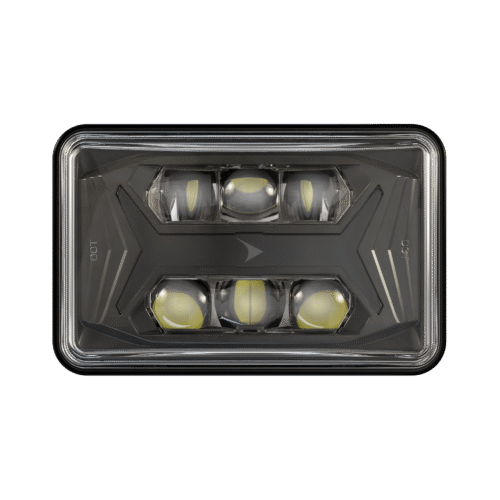

0562061 Part 0562061 12-24V DOT/ECE LED High Beam Headlight with Black BezelDownloadPDF
  ECE Reg 10, ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XVIII), IEC IP67, IEC IP69K, SAE J1383

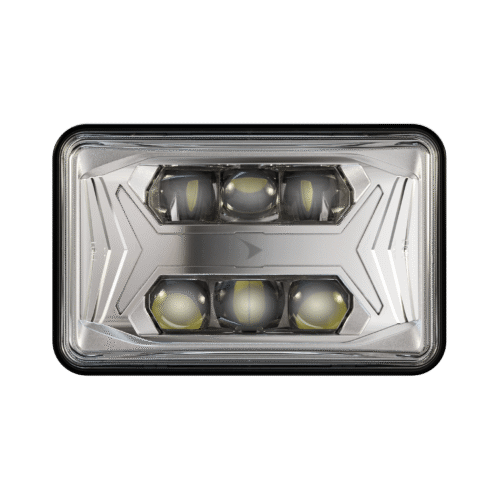

0562071 Part 0562071 12-24V DOT/ECE LED High Beam Headlight with Chrome BezelDownloadPDF
  ECE Reg 10, ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XVIII), IEC IP67, IEC IP69K, SAE J1383

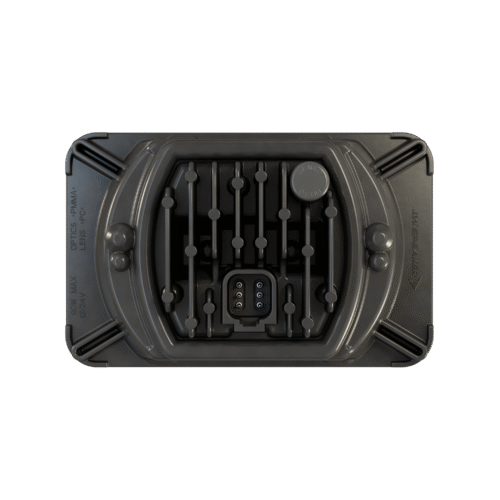

0562101 Part 0562101 12-24V DOT/ECE LED RHT 5-in-1 Headlight with Black BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - C, ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.10, FMVSS 108 s7.8 (Table XIV), IEC IP67, IEC IP69K, SAE J1383, SAE J2087, SAE J222
0562111 Part 0562111 12-24V DOT/ECE LED RHT 5-in-1 Headlight with Chrome BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - C, ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.10, FMVSS 108 s7.8 (Table XIV), IEC IP67, IEC IP69K, SAE J1383, SAE J2087, SAE J222
0562161 Part 0562161 12-24V DOT LED High and Symmetric Low Beam Headlight with Black BezelDownloadPDF
  FMVSS 108 s10.1 (Table XX), FMVSS 108 s7.8 (Table XIV), IEC IP67, IEC IP69K, SAE J222, SAE J584
0562171 Part 0562171 12-24V DOT LED High and Symmetric Low Beam Headlight with Chrome BezelDownloadPDF
  FMVSS 108 s10.1 (Table XX), FMVSS 108 s7.8 (Table XIV), IEC IP67, IEC IP69K, SAE J222, SAE J584

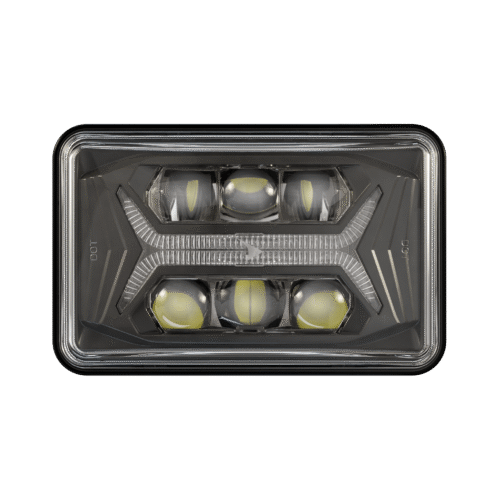

0562191 Part 0562191 12-24V DOT/ECE LED RHT High and Low Beam Headlight with Front Position with Black BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - A, ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.8 (Table XIV), IEC IP67, IEC IP69K, SAE J1383, SAE J222

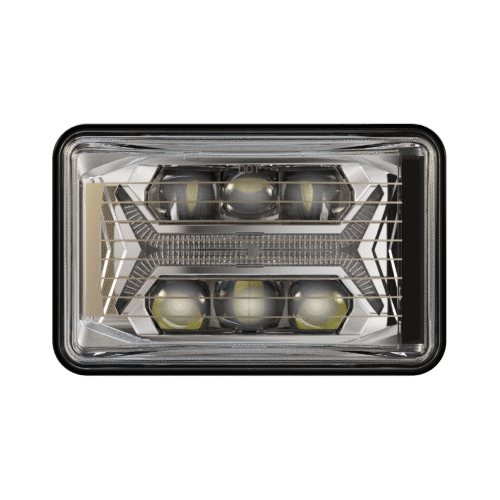

0562201 Part 0562201 12-24V DOT/ECE LED RHT High and Low Beam Headlight with Front Position with Chrome BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - A, ECE Reg 149 - HC, ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.8 (Table XIV), IEC IP67, IEC IP69K, SAE J1383, SAE J222
0562211 Part 0562211 12-24V ECE LED LHT High and Low Beam Headlight with Front Position with Black BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - A, ECE Reg 149 - HC, ECE Reg 149 - HR, IEC IP67, IEC IP69K
0562221 Part 0562221 12-24V ECE LED LHT High and Low Beam Headlight with Front Position with Chrome BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - A, ECE Reg 149 - HC, ECE Reg 149 - HR, IEC IP67, IEC IP69K

Part Numbers (Heated)

  Part NumberDescriptionRetail PricingSpec Sheet

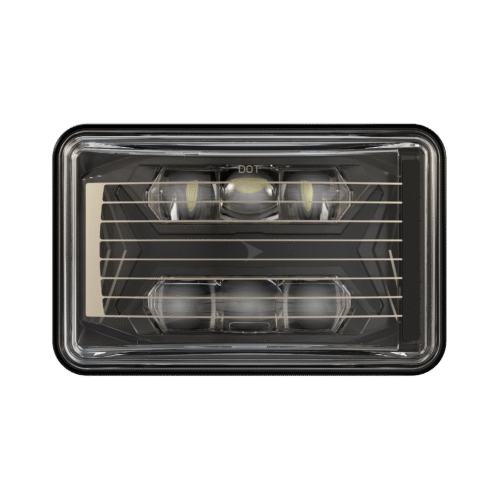

0562041 Part 0562041 12-24V DOT/ECE LED RHT Asymmettric Low Beam Heated Headlight with Black BezelDownloadPDF
  ECE Reg 10, ECE Reg 149 - C, FMVSS 108 s10.1 (Table XIX), IEC IP67, IEC IP69K, SAE J1383

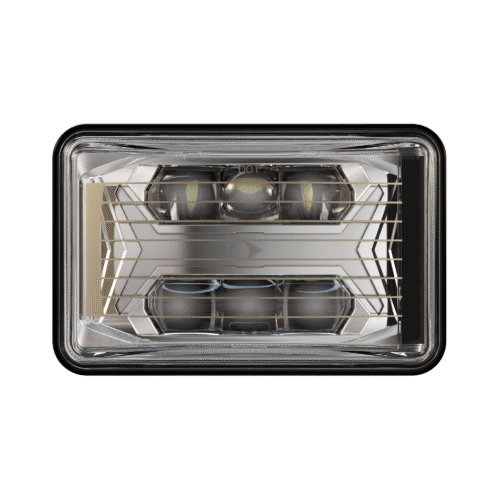

0562051 Part 0562051 12-24V DOT/ECE LED RHT Asymmetric Low Beam Heated Headlight with Chrome BezelDownloadPDF
  ECE Reg 10, ECE Reg 149 - C, FMVSS 108 s10.1 (Table XIX), IEC IP67, IEC IP69K, SAE J1383

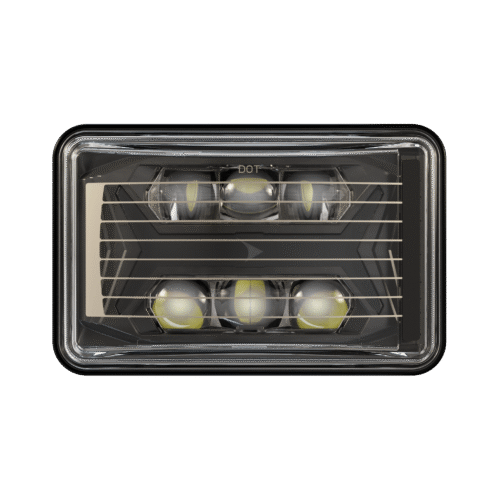

0562081 Part 0562081 12-24V DOT LED High Beam Heated Headlight with Black BezelDownloadPDF
  ECE Reg 10, ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XVIII), IEC IP67, IEC IP69K, SAE J1383

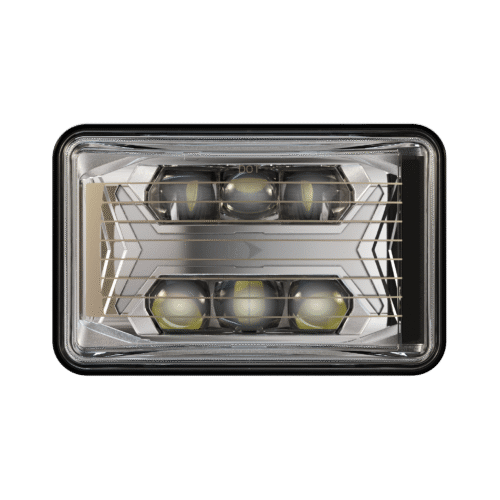

0562091 Part 0562091 12-24V DOT LED High Beam Heated Headlight with Chrome BezelDownloadPDF
  ECE Reg 10, ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XVIII), IEC IP67, IEC IP69K, SAE J1383
0562121 Part 0562121 12-24V DOT/ECE LED RHT 5-in-1 Heated Headlight with Black BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - C, ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.10, FMVSS 108 s7.8 (Table XIV), IEC IP67, IEC IP69K, SAE J1383, SAE J2087, SAE J222
0562131 Part 0562131 12-24V DOT/ECE LED RHT 5-in-1 Heated Headlight with Chrome BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - C, ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.10, FMVSS 108 s7.8 (Table XIV), IEC IP67, IEC IP69K, SAE J1383, SAE J2087, SAE J222
