Introducing the EVO-X Series

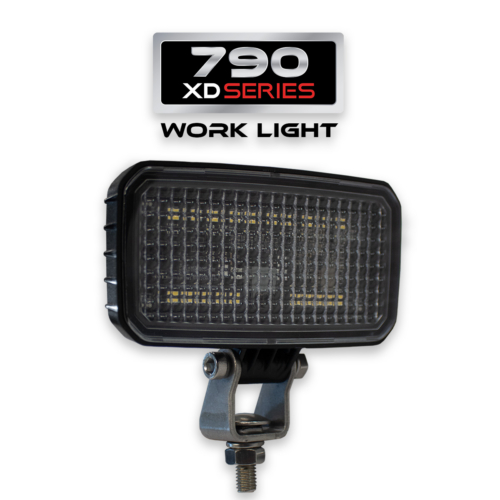

LED Work Light – Model 790 XD

LED Work Light

Overview

The Model 790XD Work Light is available with a clear lens and features a slim-profile mount for easy installation on a wide variety of trucks and equipment. Engineered for dependable performance in demanding environments, the 790XD delivers powerful illumination, long-lasting durability, and enhanced visibility on the job.

Features

  • LEDs maximize visibility in low-light working conditions
  • Ultra-lightweight design
  • Shock and vibration resistant construction
  • IP67 & IP69K rated for superior protection against water and dust
  • Available in pedestal and pendant mounting options
  • Polarity-neutral input voltage for easy installation
  • Vented design helps clear condensation
  • Maintains maximum brightness across the full operational voltage range
  • Homogenous light pattern that works well with camera systems
  • CE Compliant
Applications
  • Agriculture
  • Construction
  • Industrial
  • Mining
This product meets one or more European Conformity regulatory standards. Please see the specification sheet for more details.This product is sealed to completely protect against the entry of dust and immersion in water up to a depth of 1 meter.This product is sealed to completely protect against the entry of dust and high-pressure/high-temperature jets of water in any direction.
Share this Product
Specifications Dealer Locator
For California residents:
⚠️ WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov.
⚠️ AVERTISSEMENT: Cancer et effet nocif sur la reproduction - www.P65Warnings.ca.gov.

Part Number List

  Part NumberDescriptionRetail PricingSpec Sheet
1604301 Part 1604301 12/24V LED Work Lamp w/ AmpDownloadPDF
  CE Recognized, IEC IP67, IEC IP69K
1604311 Part 1604311 12/24V LED Work Lamp w/ DeutschDownloadPDF
  CE Recognized, IEC IP67, IEC IP69K

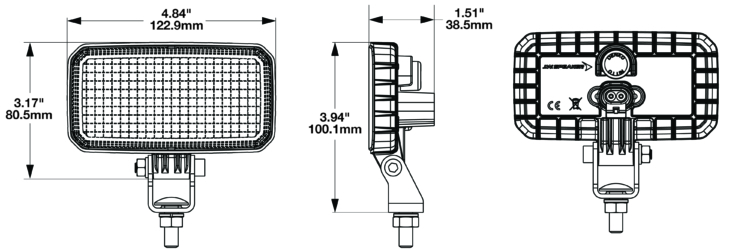

Dimensions
