90mm LED Headlight – Model 93

90mm Round LED Lights

Overview:

J.W. Speaker’s LED Model 93 lights are the new standard for 90mm lights, providing a drop-in replacement or pedestal mounts for original equipment manufacturers (OEMs), up-fitters, vehicle fleets, and individuals looking for the best-performing LED lights. Engineered as a 5-in-1 LED headlight, the Model 93 offers Low Beam, High Beam, Daytime Running Light (DRL), Front Position, and Turn Signal functionality all in one light. The headlight offers many applications for a variety of vehicles suited for agriculture, automotive, construction, industrial, material handling, mining, motorcycle, off-road 4×4, railroad, specialty vehicles, and truck and bus. Click Here to Learn More.



Features:

  • Drop-in replacement for standard 90mm lights
  • 100% ECE & DOT compliant 90mm lights for legal on-road use
  • Available as an individual light or bulk pack (x16 lights) with or without mounting brackets
  • Choose from industry-standard 90mm 3-point mounts for 1.5mm or 3mm thick mounting plates, and single or double light pedestal mounting brackets, that come with all necessary hardware for a seamless installation
  • Meets the tough criteria for IP67 and IP69K for the best protection from dust and water ingress
  • Our re-designed die-cast aluminum housing features a sealed integrated connector to meet the harsh demands of transportation and municipal applications
  • Pedestal mount brackets can be positioned at 90° intervals for maximum mounting flexibility, all while maintaining pattern integrity and legality



Street legal supporting DOT & ECE standards:

  • On-Road (RHT & LHT) versions 5 functions: LB, HB, DRL, FP, Front Turn
  • ECE Motorcycle version 4 functions: LB, HB, FP, DRL
  • SAE/DOT Motorcycle version 3 functions: LB, HB, FP

DOT-compliance for legal on-road use requires that the Model 93 high beam be used in conjunction with your stock headlights, turning off the high beam when faced with oncoming traffic. Your DOT compliance is clearly etched on the lens of the light.

ECE-compliant guarantees your lights are compliant in the European Union and in non-European countries that have adopted ECE Regulations for visibility, durability, and reliability.

Light Specific Mounting Options:

3-point Mount for a 1.5mm Mounting Frame is applicable for

  • Part Number 0554381
  • Part Number 0553071
  • Part Number 0553091
  • Part Number 0553101
  • Part Number 0553081
  • Part Number 0556701
  • Part Number 0347941

3-point Mount for a 3mm Mounting Frame is applicable for

  • All Model 93 Lighting Options

Summary:

First-Class Versatility, 5-in-1 Functionality. Replace your standard 90mm halogen or LED headlights with industry-leading technology that gets you noticed. J.W. Speaker took the Model 93 LED Light to a new standard of lighting. Complete flexibility to choose the correct light and mounting configuration for every application. A light that outlasts the job, model 93 is sealed to IP67 and IP69K, protecting it from dust and water ingress. The re-designed die-cast aluminum housing is made to meet the harsh demands of the job. Cut down on costs and increase your functionality with any of our multi-functional lights.

Applications
  • Agriculture
  • Automotive
  • Construction
  • Industrial
  • Mining
  • Powersports
  • Specialty Vehicles
  • Truck & Bus
  • Motorcycle
  • Railroad
Made in USAThis product meets one or more European regulatory standards. Please see the specification sheet for more details.This product meets one or more FMVSS 108 standards, including DOT and Transport Canada requirementsThis product is sealed to completely protect against the entry of dust and high-pressure/high-temperature jets of water in any direction.This product meets one or more Department of Transportation regulatory standards. Please see the specification sheet for more details.This product meets one or more Society of Automotive Engineers regulatory standards.This product is sealed to completely protect against the entry of dust and immersion in water up to a depth of 1 meter.
Share this Product
Specifications Dealer Locator
LED Headlight Model 93 BiLED 34 View
LED Headlight Model 93 BiLED 34 View LED Headlight Model 93 BiLED Side View LED Headlight Model 93 BiLED Back View LED Headlight Model 93 5-in-1 Low Beam LED Headlight Model 93 5-in-1 High Beam LED Headlight Model 93 5-in-1 Turn Signal LED Headlight Model 93 5-in-1 Front Position LED Headlight Model 93 5-in-1 DRL Model 93 LED 90mm Lights in High Beam with Front Position, Low Beam, and Turn /DRL. LED Headlight Model 93 High Beam with Front Position 3/4 View LED Headlight Model 93 High Beam 3/4 View LED Headlight Model 93 Low or Fog Beam 3/4 View LED Headlight Model 93 Turn & DRL 3/4 View Led Headlight Model 93 Side View LED Headlight Model 93 High Beam Back View LED Headlight Model 93 Low Beam Back View Model 93 LED 90mm Light Close Up on Bus Model 93 LED 90mm Headlights Installed on Tram LED Headlight Model 93 High Beam on a Bus Model 93 LED 90mm Light for Tractors Model 93 LED 90mm Headlights on City Bus LED Model 93 Headlight High and Low Beam on Fatbike
For California residents:
⚠️ WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov.
⚠️ AVERTISSEMENT: Cancer et effet nocif sur la reproduction - www.P65Warnings.ca.gov.

Part Numbers (Single)

The following lights are available as singles.

  Part NumberDescriptionPrice (U.S. only)Spec Sheet
0553071 Part 0553071 12-24V DOT/ECE LED High Beam HeadlightDownloadPDF
  Complies with: Buy America Standards, ECE Reg 112, FMVSS 108 s10.1 (Table XVIII), IEC IP69K
0554381 Part 0554381 12-24V DOT/ECE LED High Beam Headlight with Front PositionDownloadPDF
  Complies with: Buy America Standards, ECE Reg 10, ECE Reg 112, ECE Reg 7, FMVSS 108 s10.1 (Table XVIII), IEC IP69K
0553081 Part 0553081 12-24V DOT/ECE Reg 113 LED Low Beam HeadlightDownloadPDF
  Complies with: Buy America Standards, ECE Reg 10, ECE Reg 113, FMVSS 108 s10.1 (Table XIX), IEC IP69K
0553091 Part 0553091 12-24V ECE Reg 112 LHT LED Low Beam HeadlightDownloadPDF
  Complies with: Buy America Standards, ECE Reg 10, ECE Reg 112, FMVSS 108 s10.1 (Table XIX), IEC IP69K
0553101 Part 0553101 12-24V DOT/ECE Reg 112 RHT LED Low Beam HeadlightDownloadPDF
  Complies with: Buy America Standards, ECE Reg 10, ECE Reg 112, FMVSS 108 s10.1 (Table XIX), IEC IP69K
0556701 Part 0556701 12-24V SAE/ECE LED Fog LightDownloadPDF
  Complies with: Buy America Standards, ECE Reg 10, ECE Reg 19, IEC IP69K, SAE J583
0347941 Part 0347941 12-24V SAE/ECE LED Turn Signal with DRL FunctionDownloadPDF
  Complies with: Buy America Standards, ECE Reg 6, ECE Reg 7, ECE Reg 87, FMVSS 108 s7.1 (Table VI), IEC IP69K, SAE J2087, SAE J588
0560371 Part 0560371 12-24V DOT/ECE R112 RHT 5-in-1 HeadlightDownloadPDF
  Complies with: Buy America Standards, ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - HC, ECE Reg 149 - R, FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.1 (Table VI), IEC IP67, IEC IP69K, SAE J2087, SAE J222, SAE J588, Tested to ECE Reg. 10 (Radiated Emissions only)
0560381 Part 0560381 12-24V ECE R112 LHT 5-in-1 HeadlightDownloadPDF
  Complies with: Buy America Standards, ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - HC, ECE Reg 149 - R, IEC IP67, IEC IP69K, Tested to ECE Reg. 10 (Radiated Emissions only)
0560391 Part 0560391 12V SAE/DOT Motorcycle HeadlightDownloadPDF
  Complies with: Buy America Standards, FMVSS 108 s10.1 (Table XX), IEC IP67, IEC IP69K, SAE J222, SAE J584, Tested to ECE Reg. 10 (Radiated Emissions only)
0560401 Part 0560401 12V ECE R113 Motorcycle HeadlightDownloadPDF
  Complies with: Buy America Standards, ECE Reg 10, ECE Reg 148 - MA, ECE Reg 148 - RL, ECE Reg 149 - WC-DS, ECE Reg 149 - WR-DS, IEC IP67, IEC IP69K, Tested to ECE Reg. 10 (Radiated Emissions only)
0560501 Part 0560501 12-24V ECE R113 5-in-1 HeadlightDownloadPDF
  Complies with: Buy America Standards, ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - WC-DS, ECE Reg 149 - WR-DS, IEC IP67, IEC IP69K, Tested to ECE Reg. 10 (Radiated Emissions only)

Part Numbers (Bulk)

The following lights are available in bulk quantities.

  Part NumberDescriptionPrice (U.S. only)Spec Sheet
0560372 Part 0560372 12-24V DOT/ECE R112 RHT 5-in-1 Headlight - (Bulk Qty. x16 lights)DownloadPDF
  Complies with: Buy America Standards, ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - HC, ECE Reg 149 - R, FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.1 (Table VI), IEC IP67, IEC IP69K, SAE J2087, SAE J222, SAE J588, Tested to ECE Reg. 10 (Radiated Emissions only)
0560382 Part 0560382 12-24V ECE R112 LHT 5-in-1 Headlight - (Bulk Qty. x 16 lights)DownloadPDF
  Complies with: Buy America Standards, ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - HC, ECE Reg 149 - R, IEC IP67, IEC IP69K, Tested to ECE Reg. 10 (Radiated Emissions only)
0560392 Part 0560392 12V SAE/DOT Motorcycle Headlight - (Bulk Qty. x 16 lights)DownloadPDF
  Complies with: Buy America Standards, FMVSS 108 s10.1 (Table XX), IEC IP67, IEC IP69K, SAE J222, SAE J584, Tested to ECE Reg. 10 (Radiated Emissions only)
0560402 Part 0560402 12V ECE R113 Motorcycle Headlight - (Bulk Qty. x 16 lights)DownloadPDF
  Complies with: Buy America Standards, ECE Reg 10, ECE Reg 148 - MA, ECE Reg 148 - R1, ECE Reg 149 - WC-DS, ECE Reg 149 - WR-DS, IEC IP67, IEC IP69K, Tested to ECE Reg. 10 (Radiated Emissions only)
0560502 Part 0560502 12-24V ECE R113 5-in-1 Headlight - (Bulk Qty. x16 lights)DownloadPDF
  Complies with: Buy America Standards, ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - WC-DS, ECE Reg 149 - WR-DS, IEC IP67, IEC IP69K, Tested to ECE Reg. 10 (Radiated Emissions only)

Headlights with Pre-Assembled Mounts

The following lights are available with the 90mm Light 3-Point Mount for 3mm Mounting Frame pre-assembled on the light.

  Part NumberDescriptionPrice (U.S. only)Spec Sheet
0560892 Part 0560892 12-24V DOT/ECE R112 RHT 5-in-1 Headlight with Mount - (Bulk Qty. x16 lights & mounts)DownloadPDF
  Complies with: Buy America Standards, ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - HC, ECE Reg 149 - R, FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.1 (Table VI), IEC IP67, IEC IP69K, SAE J2087, SAE J222, SAE J588, Tested to ECE Reg. 10 (Radiated Emissions only)
0560902 Part 0560902 12-24V ECE R112 LHT 5-in-1 Headlight with Mount - (Bulk Qty. x16 lights with mounts)DownloadPDF
  Complies with: Buy America Standards, ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - HC, ECE Reg 149 - R, IEC IP67, IEC IP69K, Tested to ECE Reg. 10 (Radiated Emissions only)
0560912 Part 0560912 12V SAE/DOT Motorcycle Headlight with Mounts - (Bulk Qty. x16 lights with mounts)DownloadPDF
  Complies with: Buy America Standards, FMVSS 108 s10.1 (Table XX), IEC IP67, IEC IP69K, SAE J222, SAE J584, Tested to ECE Reg. 10 (Radiated Emissions only)
0560922 Part 0560922 12V ECE R113 Motorcycle Headlight - (Bulk Qty. x16 lights with mounts)DownloadPDF
  Complies with: Buy America Standards, ECE Reg 10, ECE Reg 148 - MA, ECE Reg 148 - RL, ECE Reg 149 - WC-DS, ECE Reg 149 - WR-DS, IEC IP67, IEC IP69K, Tested to ECE Reg. 10 (Radiated Emissions only)
0560932 Part 0560932 12-24V ECE R113 5-in-1 Headlight with Mount - (Bulk Qty. x16 lights with mounts)DownloadPDF
  Complies with: Buy America Standards, ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - WC-DS, ECE Reg 149 - WR-DS, IEC IP67, IEC IP69K, Tested to ECE Reg. 10 (Radiated Emissions only)

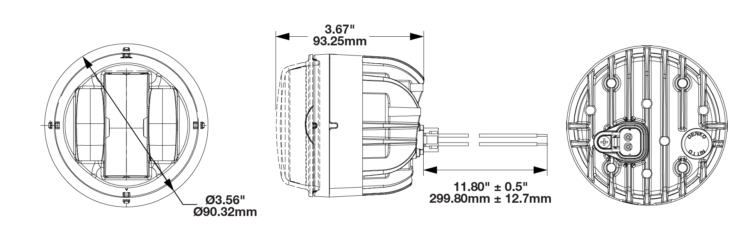

Dimensions

LED 5 in 1 Headlight Model 93 Dimensions

Part Accessories

Part NumberDescriptionPrice (U.S. only)Spec Sheet
3271981 Part 3271981 5 Function Wire Assembly for Model 93DownloadPDF
3272001 Part 3272001 SAE/DOT Motorcycle Wire Assembly without DI/DRL for Model 93DownloadPDF
3272011 Part 3272011 ECE Motorcycle Wire Assembly without DI for Model 93DownloadPDF
8001211 Part 8001211 Motorcycle Bar Mount Kit with Wiring Harness, LargeDownloadPDF
8001221 Part 8001221 Motorcycle Bar Mount Kit with Wiring Harness, SmallDownloadPDF
8001461 Part 8001461 90mm Light 3-Point Mount for 1.5mm Mounting FrameDownloadPDF
8001471 Part 8001471 90mm Light 3-Point Mount for 3mm Mounting FrameDownloadPDF
8001601 Part 8001601 Pedestal Mounting Bracket for Model 93 Single LampDownloadPDF
8001621 Part 8001621 Pedestal Mounting Bracket for Model 93 Double LampDownloadPDF
0700001 Part 0700001 Motorcycle Bar Mount Kit, 20-24mmDownloadPDF
0700011 Part 0700011 Motorcycle Bar Mount Kit, 25-29mmDownloadPDF
