LED Headlight – Model 8770S Locomotive

7" Round Locomotive Headlamps

The Model 8770S offers the most powerful FRA-approved replacement solution for 7″ locomotive headlights (PAR56).


  • 200,000 minimum candela
  • Blizzard Buster technology melts ice and snow to keep locomotive headlights unobstructed
  • Die-cast aluminum housing for maximum protection
  • Meets Federal Railroad Administration (FRA) requirements

Designed for railroad locomotives using only high and low functionality (determined through a control line), the model 8770S can also be used as a 75V ditch light application.

Additional features include heavy-duty construction, solid-state electronics and our unique Blizzard Buster technology that effectively melts snow and prevents icing. LEDs are long-lasting, providing years of maintenance-free operation and lower life-cycle costs when compared to halogen lamps.

  • Railroad
Made in USAThis product meets one or more Federal Railroad Administration regulatory standards. Please see the specification sheet for more details.
Share this Product
Specifications Dealer Locator

Part Number List

  Part NumberDescriptionPrice (U.S. only)Spec Sheet
0548751 Part 0548751 75V LED Locomotive Headlight with Spot Beam PatternDownloadPDF
  Complies with: Buy America Standards, FRA Title 49 CFR 229.125 (a), FRA Title 49 CFR 229.125 (b), FRA Title 49 CFR 229.125 (d) (2)

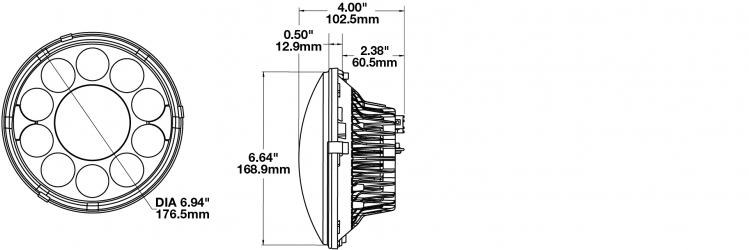

LED Headlight Model 8770S Locomotive Dimensions
