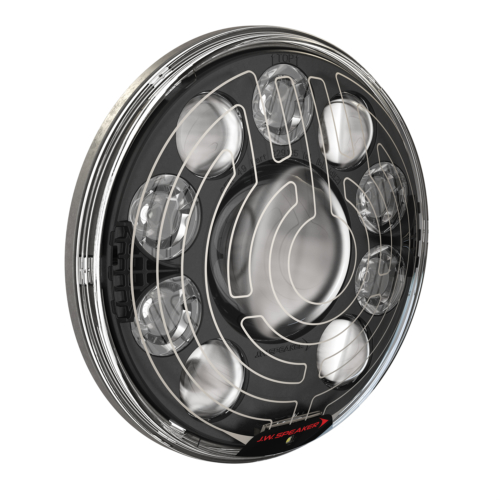

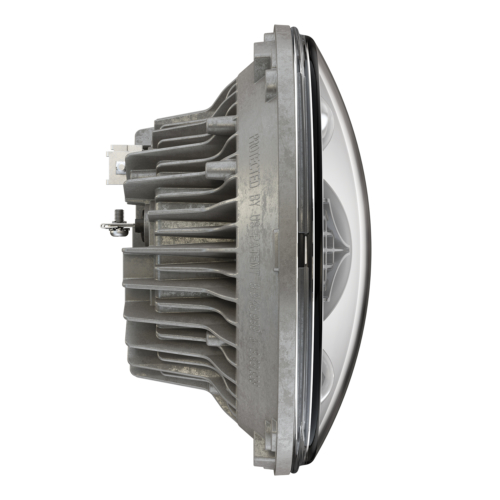

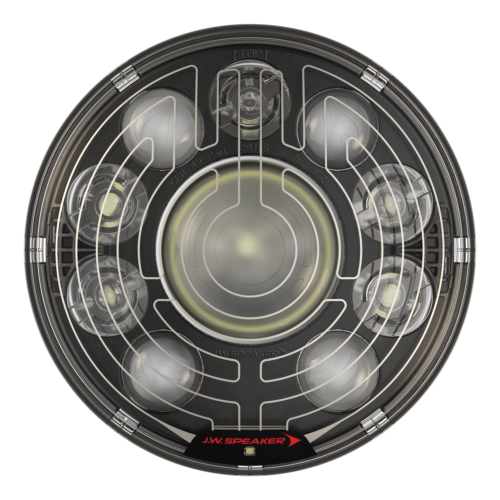

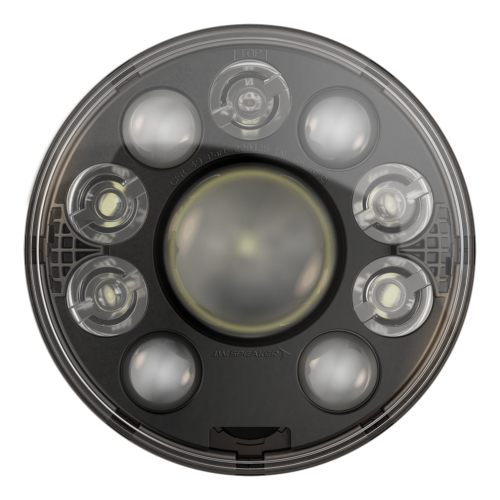

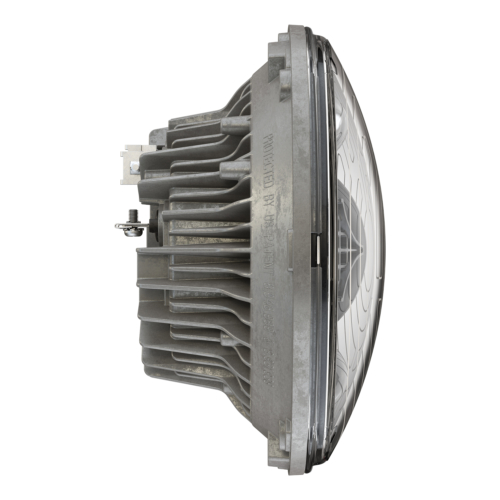

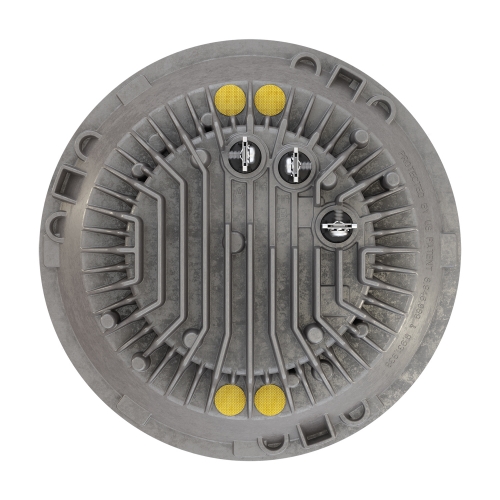

LED Headlight – Model 8770 Locomotive
7" Round Locomotive HeadlampsOverview
The Model 8770 offers the most powerful FRA-approved replacement solution for 7″ locomotive headlights (PAR56). Designed for railroad locomotives using only high and low functionality (determined through a control line), the Model 8770 GEN3 can also be used as a ditch light application.
Features
- 230,000 minimum Candela output
- SmartHeat® technology melts ice and snow to keep locomotive headlights unobstructed
- Die-cast aluminum housing for maximum protection
- Meets all Federal Railroad Administration (FRA) requirements
Summary
Designed for railroad locomotives using only high and low functionality (determined through a control line), the model 8770 can also be used as a 75V ditch light application.
Additional features include heavy-duty construction, solid-state electronics and our unique SmartHeat® technology that effectively melts snow and prevents icing. LEDs are long-lasting, providing years of maintenance-free operation and lower life-cycle costs when compared to halogen lamps.
Applications
- Industrial
- Railroad
For California residents:
⚠️ WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov.
⚠️ AVERTISSEMENT: Cancer et effet nocif sur la reproduction - www.P65Warnings.ca.gov.
⚠️ WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov.
⚠️ AVERTISSEMENT: Cancer et effet nocif sur la reproduction - www.P65Warnings.ca.gov.
Part Numbers (Heated)
| Part Number | Description | Price (U.S. only) | Spec Sheet | |||||
| 0551901 | Part 0551901 24-110V LED Locomotive Headlight with Spot Beam Pattern & Heated Lens | DownloadPDF | ||||||
| Complies with: Buy America Standards, FRA Title 49 CFR 229.125 (a), FRA Title 49 CFR 229.125 (b), FRA Title 49 CFR 229.125 (d) (2), IEC IP66, Tested to ECE Reg. 10 (Radiated Emissions only) | ||||||||
| 0561031 | Part 0561031 24-110V LED Locomotive Headlight with Warm White Spot Beam Pattern & Heated Lens | DownloadPDF | ||||||
| Complies with: Buy America Standards, FRA Title 49 CFR 229.125 (a), FRA Title 49 CFR 229.125 (b), FRA Title 49 CFR 229.125 (d) (2), IEC IP66 | ||||||||
Part Number List
| Part Number | Description | Price (U.S. only) | Spec Sheet | |||||
| 0554601 | Part 0554601 24-110V LED Locomotive Headlight with Spot Beam Pattern | DownloadPDF | ||||||
| Complies with: Buy America Standards, FRA Title 49 CFR 229.125 (a), FRA Title 49 CFR 229.125 (b), FRA Title 49 CFR 229.125 (d) (2), IEC IP66, Tested to ECE Reg. 10 (Radiated Emissions only) | ||||||||
| 0561061 | Part 0561061 24-110V LED Locomotive Headlight with Warm White Spot Beam Pattern | DownloadPDF | ||||||
| Complies with: FRA Title 49 CFR 229.125 (a), FRA Title 49 CFR 229.125 (b), FRA Title 49 CFR 229.125 (d) (2), IEC IP66 | ||||||||

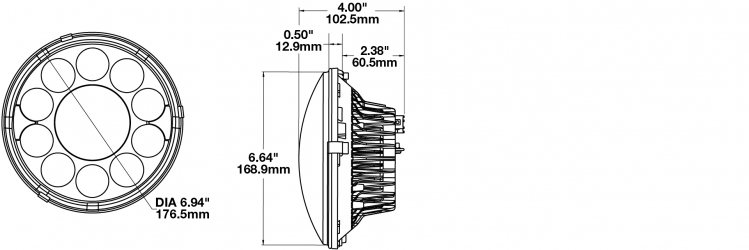

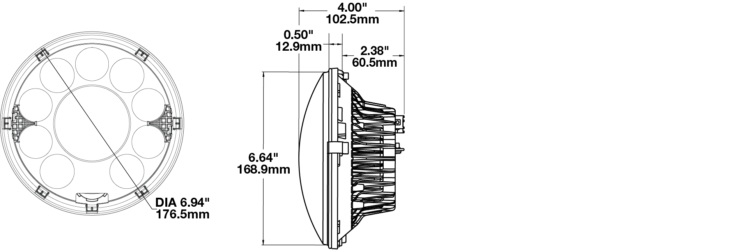

Dimensions
Photometric
