LED Headlight – Model 8633 Evolution

5.75" Round LED Headlights with Pedestal Mount

Overview
The Model 8633 Evolution LED headlight brings you all of the same great features found in our Model 8632 Evolution LED headlight, with the addition of SmartHeat®. This makes it an ideal LED headlight replacement for 5.75″ specifications.

Features

  • SmartHeat® Technology to de-ice lens without driver intervention
  • DOT- and ECE-compliant options making this product 100% legal for on-road use.
  • Sold as single lights and as 2 light kits
  • Plug and play installation ensures easy installation.
  • Low and High Beam utilize inner optics.
  • Turn signal, daytime running light & front position functions utilize an outer ring at high intensities.
  • Produces identical light output to our Model 8630 Evolution LED headlight and Model 8631 Evolution LED headlight.

Summary
The Model 8633 Evolution LED headlight offers a powerful LED upgrade option for pedestal mount 5.75″ (PAR46) sealed beam headlights. Our patented SmartHeat® technology features a thermally conductive grid system that will de-ice the lens up to twice as fast as other lights. The non-heated Model 8632 offers a side marker that illuminates along the side of the light, increasing visibility when in use.

Applications
  • Construction
  • Industrial
  • Mining
  • Off-Road 4x4
  • Railroad
  • Specialty Vehicles
  • Truck & Bus
Made in USAThis product meets one or more European regulatory standards. Please see the specification sheet for more details.This product meets one or more FMVSS 108 standards, including DOT and Transport Canada requirementsThis product is sealed to completely protect against the entry of dust and immersion in water up to a depth of 1 meter.This product is sealed to completely protect against the entry of dust and high-pressure/high-temperature jets of water in any direction.This product meets one or more Society of Automotive Engineers regulatory standards.
Share this Product
Specifications Dealer Locator
LED Headlight Model 8633 Evolution Heated Combined View with SmartHeat

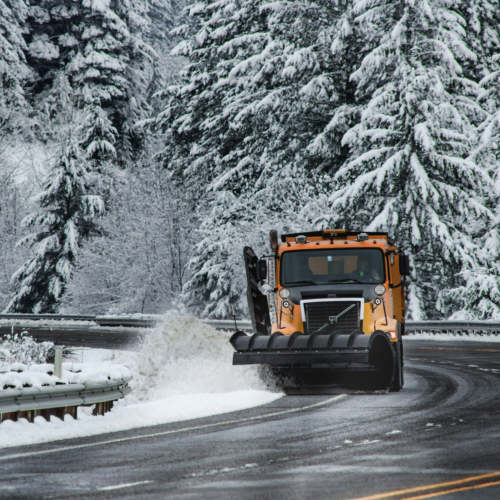

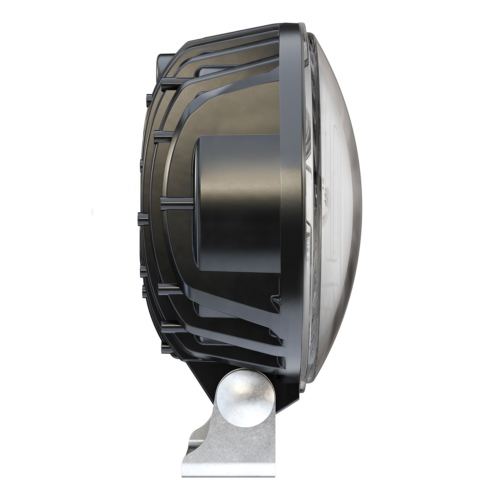

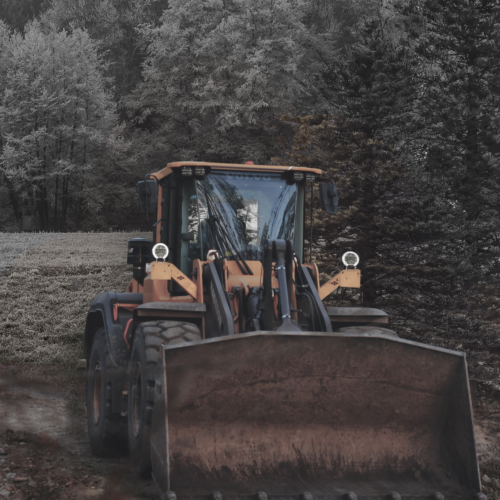

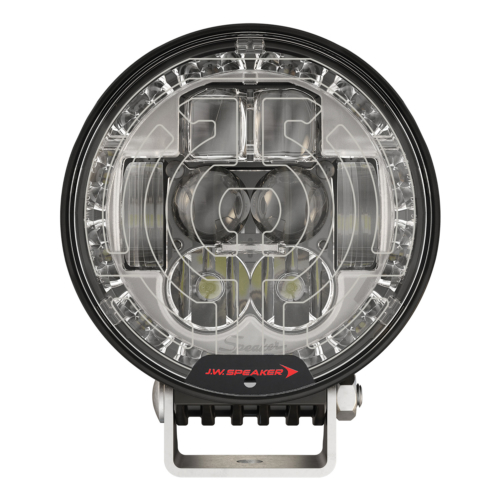

LED Headlight Model 8633 Evolution Heated Combined View with SmartHeat LED Headlight Model 8633 Evo Heated 3/4 View LED Headlight Model 8633 Evo Heated Front View LED Headlight Model 8633 Evo Heated Side View Model 8633 Snow Plow Truck Lights On Model 8633 Heated on Daimler Snow Plow Model 8633 and Model 792 on Tractor Cold Day Model 8633 & 792 Wheel Loader Excavator
For California residents:
⚠️ WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov.
⚠️ AVERTISSEMENT: Cancer et effet nocif sur la reproduction - www.P65Warnings.ca.gov.

Part Numbers (Heated)

  Part NumberDescriptionPrice (U.S. only)Spec Sheet
0561301 Part 0561301 12/24V DOT/ECE LED RHT Heated Headlight w/ Turn Signal, DRL, & FPDownloadPDF
  Complies with: Buy America Standards, ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - HC, ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.1 (Table VI), FMVSS 108 s7.8 (Table XIV), IEC IP67, IEC IP69K, SAE J2087, SAE J222, SAE J588, Tested to ECE Reg. 10 (Radiated Emissions only)
0561303 Part 0561303 12/24V DOT/ECE LED RHT Heated Headlight w/ Turn Signal, DRL, & FP - 2 Light KitDownloadPDF
  Complies with: Buy America Standards, ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - HC, ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.1 (Table VI), FMVSS 108 s7.8 (Table XIV), IEC IP67, IEC IP69K, SAE J2087, SAE J222, SAE J588, Tested to ECE Reg. 10 (Radiated Emissions only)
0561313 Part 0561313 12/24V ECE LED LHT Heated Headlight w/ Turn Signal, DRL, & FP - 2 Light KitDownloadPDF
  Complies with: Buy America Standards, ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - HC, ECE Reg 149 - HR, IEC IP67, IEC IP69K, Tested to ECE Reg. 10 (Radiated Emissions only)

Dimensions

Model 8633 Heated Dimension Drawing

Part Accessories

Part NumberDescriptionPrice (U.S. only)Spec Sheet
3268991 Part 3268991 5 Function Wire Assembly for Model 8633 DownloadPDF
