LED Auxiliary Light – Model TS3001R

6" Round LED Auxiliary Light

The TS3001R is a 6” round LED off-road auxiliary light designed for rugged off-road use. Featuring a thermally-conductive proprietary technology housing and state-of-the-art LEDs, the TS3001R is resistant to the shock and vibration commonly associated with off-roading. The Model TS3001R comes with an improved mounting design that simplifies installation, making it ideal for a-pillars, front bumpers, and rooftop brackets.

  • Premium performance high-output LEDs
  • Compact and lightweight design
  • New mounting simplifies installation and provides greater mounting flexibility
  • Increased light output provides premium off-road performance
  • Includes black lens cover, additional colored lenses available
  • Also available with oval shape (TS3001V)
Applications
  • Agriculture
  • Off-Road 4x4
  • Power Sports
  • Specialty Vehicles
  • Truck & Bus
Made in USAThis product meets one or more FMVSS 108 standards, including DOT and Transport Canada requirementsThis product meets one or more European regulatory standards. Please see the specification sheet for more details.
Share this Product
Specifications Dealer Locator

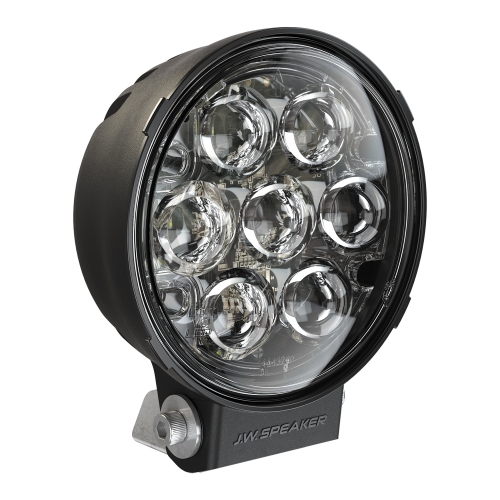

LED Off Road Light Model TS3001R 3/4 View

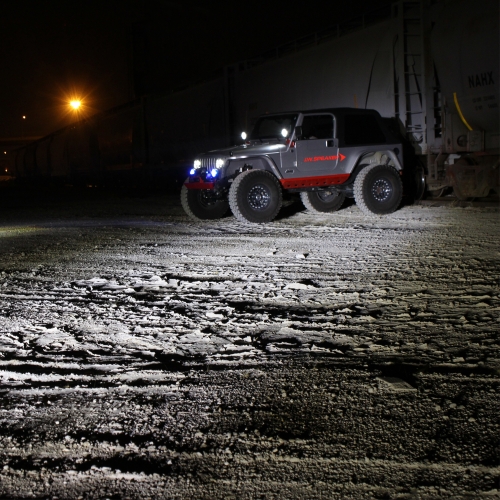

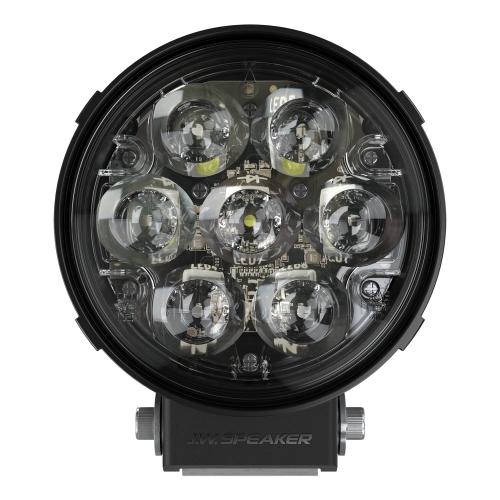

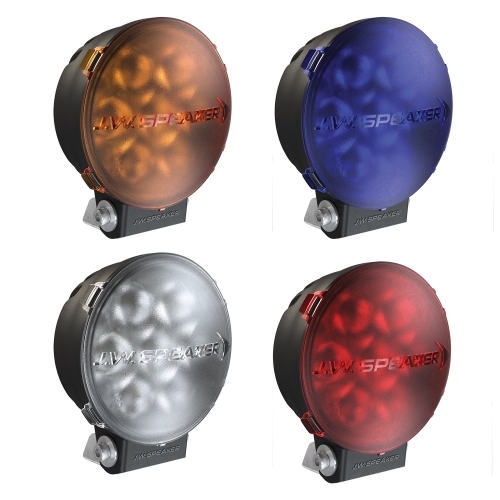

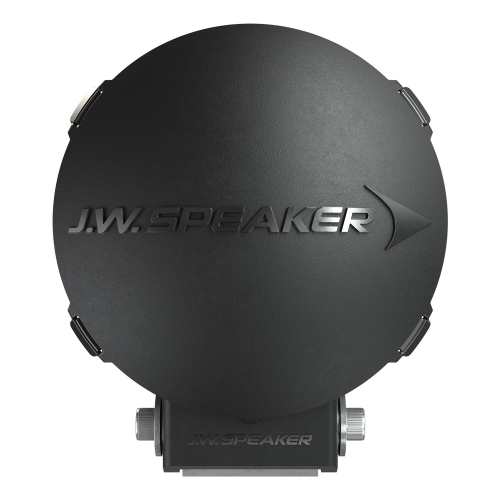

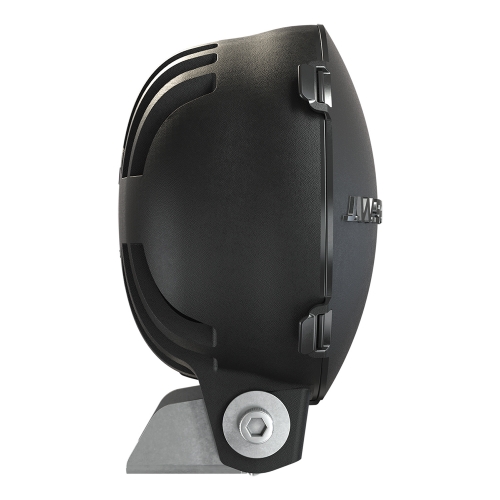

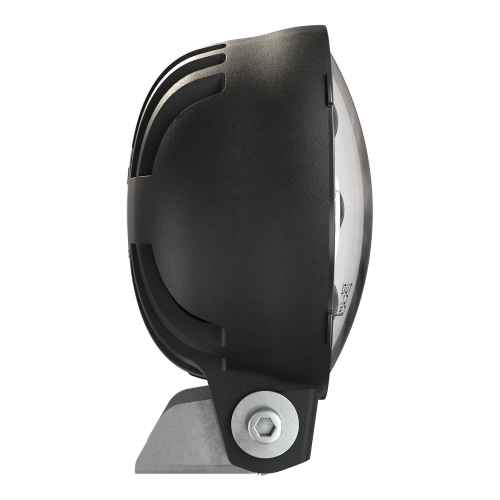

LED Off Road Light Model TS3001R 3/4 View LED Off Road Light Model TS3001R Cover 3/4 View LED Off Road Light Model TS3001R Front View LED Off Road Light Model TS3001R Cover Front View LED Off Road Light Model TS3001R Side View LED Off Road Light Model TS3001R Cover Side View LED Off Road Light Model TS3001R Back View LED Off-Road Light Replacement Lens Cover Model TS3001R Combined View LED Off Road Light Model TS3001R On Road LED Off Road Light Model TS3001R On Road LED Off Road Light Model TS3001R On Road

Part Numbers (Kits)

The following lights are available in kits, including 2 lights.

  Part NumberDescriptionSpecification Sheet
0550443 Part 0550443 12-24V DOT LED Auxiliary Light with Driving Beam - 2 Light Kit DownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, FMVSS 108 Table XVIII, IEC IP67
0550463 Part 0550463 12-24V ECE LED Auxiliary Light with Driving Beam - 2 Light Kit DownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, ECE Reg 112, IEC IP67
0550483 Part 0550483 12-24V LED Auxiliary Light with Pencil Beam - 2 Light Kit DownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, IEC IP67

Part Numbers (Single)

The following lights are available as singles.

  Part NumberDescriptionSpecification Sheet
0550441 Part 0550441 12-24V DOT LED Auxiliary Light with Driving Beam - 1 Light DownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, FMVSS 108 Table XVIII, IEC IP67
0550461 Part 0550461 12-24V ECE LED Auxiliary Light with Driving Beam - 1 LightDownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, ECE Reg 112, IEC IP67
0550481 Part 0550481 12-24V LED Auxiliary Light with Pencil Beam - 1 Light DownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, ECE Reg 112, FMVSS 108 Table XVIII, IEC IP67

Dimensions

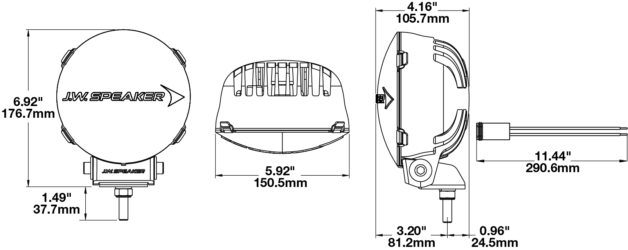

LED Off-Road Light Model TS3001R Dimensions

Part Accessories

Part NumberDescriptionSpecification Sheet
6149203 Part 6149203 A-Pillar Mounting Kit for Jeep JKDownloadInquireAdd to Inquiry
6149233 Part 6149233 A-Pillar Mounting Kit for Jeep TJDownloadInquireAdd to Inquiry
5874271 Part 5874271 Clear Replacement Lens Cover for Model TS3001RDownloadInquireAdd to Inquiry
5874281 Part 5874281 Amber Replacement Lens Cover for Model TS3001RDownloadInquireAdd to Inquiry
5874291 Part 5874291 Red Replacement Lens Cover for Model TS3001RDownloadInquireAdd to Inquiry
5874301 Part 5874301 Blue Replacement Lens Cover for Model TS3001RDownloadInquireAdd to Inquiry
