LED Work Light – Model 529

4" x 19" LED Work Light

Overview
The innovative Model 529 LED Work Light is the ideal solution for those needing an easy to mount, low-profile design with a wide spot beam.

Optional Flashing Sequence:
For additional eye-catching visibility, use the flash mode instead of the constant beam of light to alert others. The optional flash rate is 1 second. (No synchronization is required)

Features

  • Versatile pedestal mount allows warning light to be mounted on vehicles or stationary objects
  • Optional flash rate of 1Hz with a duty cycle of 50%. (No synchronization is required)
  • Solid-optic design improving longevity and reliable performance
  • 3-pin Deutsche connection
  • 12-24V DC Power

Summary
The Model 529 LED Work Light provides a wide spot beam pattern using high-performance optics for bright, white light.

This product is sealed to completely protect against the entry of dust and immersion in water up to a depth of 1 meter.This product is sealed to completely protect against the entry of dust and high-pressure/high-temperature jets of water in any direction.
Share this Product
Specifications Dealer Locator

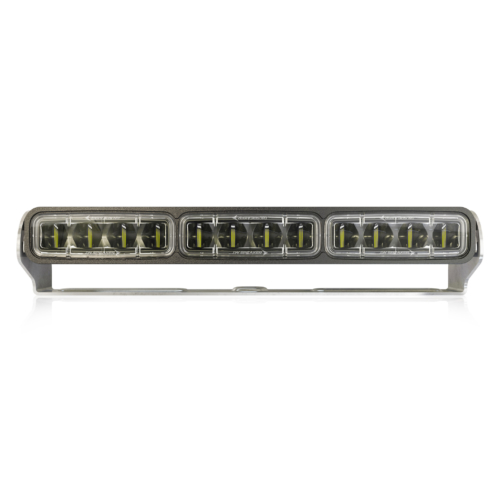

LED Model 529 Super Wide Pencil Beam Work Light - Front View

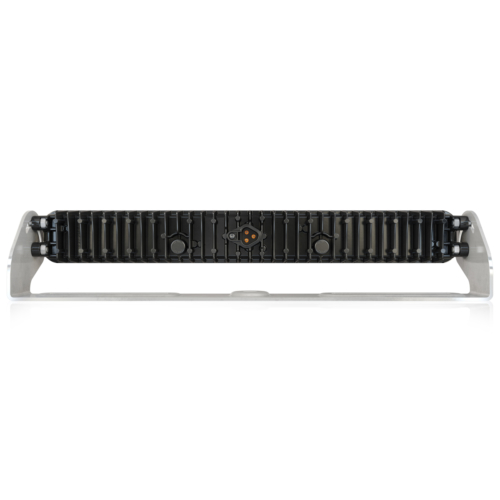

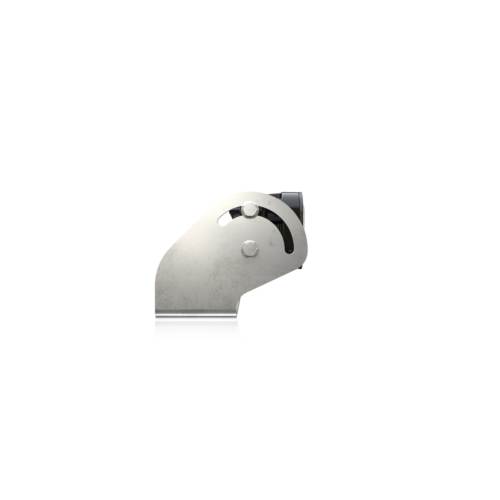

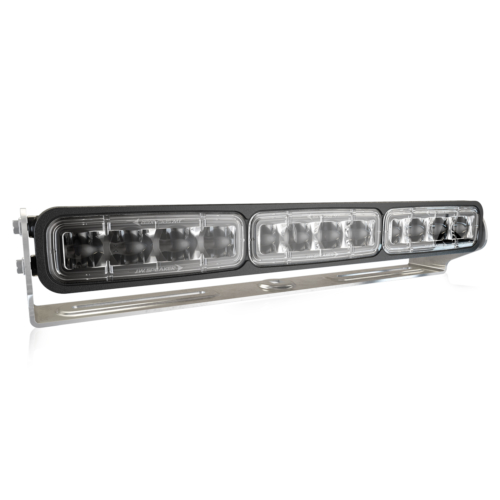

LED Model 529 Super Wide Pencil Beam Work Light - Front View LED Model 529 Work Light 3/4 View LED Model 529 Work Light Side View LED Model 529 Work Light Back View
For California residents:
⚠️ WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov.
⚠️ AVERTISSEMENT: Cancer et effet nocif sur la reproduction - www.P65Warnings.ca.gov.

Part Number List

  Part NumberDescriptionPrice (U.S. only)Spec Sheet
1300771 Part 1300771 12-24V LED Super Wide Auxiliary LightDownloadPDF
  Complies with: IEC IP67, IEC IP69K, Tested to ECE Reg. 10 (Radiated Emissions only)

Dimensions

LED Big Red Stripe Dimensions Model 7529

Part Accessories

Part NumberDescriptionPrice (U.S. only)Spec Sheet
8200121 Part 8200121 Black Mount Kit for XD Series Work LightsDownloadPDF
