LED Tail Lights – Model 234

4" Heated & Non-Heated Tail Lights

Overview:
Snow and ice won’t stop this tail light! J.W. Speaker’s Model 234 are the industry’s first LED tail lights that offers SmartHeat™ technology to de-ice lenses, enabling year-round use while providing superior visibility, extreme durability and unmatched longevity.

Features:

  • Lightweight yet rugged
  • Capable of withstanding 10 g’s worth of vibration
  • Drop-in replacements for typical 4″ round halogen tail lights used in heavy-duty trucks
  • Sealed to IP69K for power wash & steam cleaning resistance
  • Superior condensation management
  • Street legal supporting DOT, Transport Canada ECE and Military standards & requirements
  • Offering both heated and non-heated LED upgrades

SmartHeat™ Heating System:

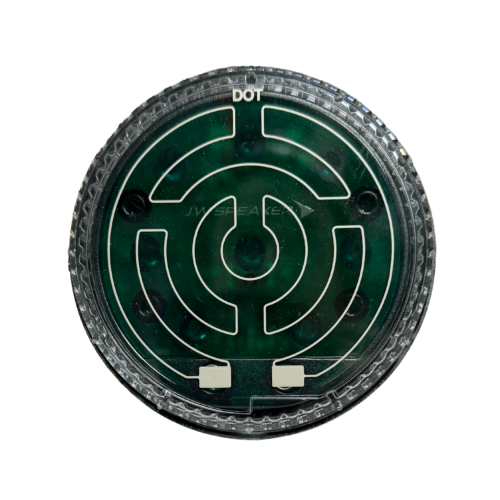

The heated versions of the Model 234 feature a smart heating system automatically de-ices lens.

Street legal supporting DOT standards:
DOT versions are for use in the U.S. DOT-compliant guarantees that your lights are legal on the road, meeting section 108 requirements of the Federal Motor Safety Standards. Your DOT-compliance is clearly etched on the lens of the light.

Installation Instructions:
The Model 234 offers drop-in replacement for any 4″ round tail light. Installation requires the third wire (for the heater) to be connected in order for the heater to work. Turn off power before installing. Find installation instructions under our Related Resources below.

Summary:
Model 234 tail lights from J.W. Speaker have three versions: (1) a red stop/tail/turn, (2) an amber turn, and (3) a clear reverse signal. All are designed to be a drop-in replacement for 4″ round tail lights using rubber mounting rings and 3-pin Packard connectors. Installation is plug & play with minimal downtime. To accommodate vehicles using a different connector, J.W. Speaker also provides a lamp that comes with 3-pin Packard connector wire harness.

Applications
  • Construction
  • Specialty Vehicles
  • Truck & Bus
Made in USAThis product meets one or more FMVSS 108 standards, including DOT and Transport Canada requirementsThis product is sealed to completely protect against the entry of dust and high-pressure/high-temperature jets of water in any direction.This product meets one or more Society of Automotive Engineers regulatory standards.
Share this Product
Specifications Dealer Locator
LED Tail Light, Model 234 Red 3/4 View

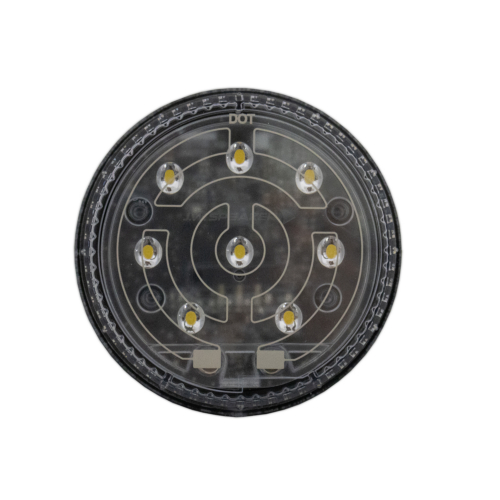

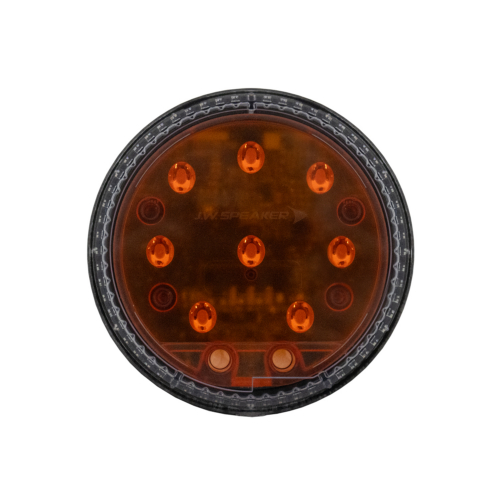

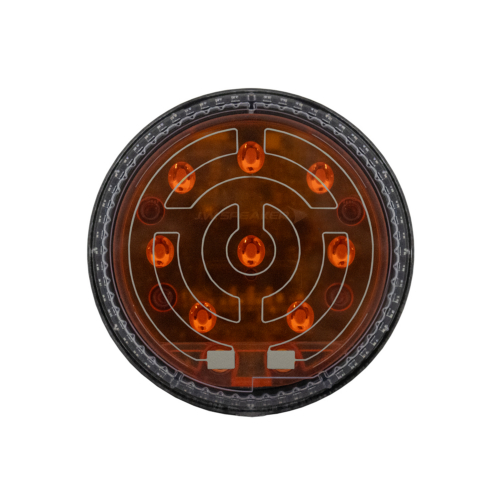

LED Tail Light, Model 234 Red 3/4 View LED Turn Signal Light, Model 234 Amber 3/4 View LED Reverse Light Model 234, Clear 3/4 View LED Tail Light, Model 234 Red Front View LED Turn Signal Light, Model 234 Amber Front View LED Reverse Light Model 234, Clear Front View LED Tail Light, Model 234 Red Side View LED Turn Signal Light, Model 234 Amber Side View LED Reverse Light Model 234, Clear Side View LED Heated Tail Light Model 234 Installed on Truck Trailer LED Stop and Tail Light Model 234 Heated in Use During a Snowstorm LED Stop and Tail Light Model 234 Heated in Use at Night

Part Numbers (Heated)

  Part NumberDescriptionSpecification Sheet
0346261 Part 0346261 12-24V DOT LED Heated Stop & Tail LightDownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, FMVSS 108 Table IX, FMVSS 108 Table VII, FMVSS 108 Table VIII, IEC IP69K, SAE J585, SAE J586, SAE J588
0346264 Part 0346264 12-24V DOT LED Heated Stop & Tail Light Kit with Harness DownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, FMVSS 108 Table IX, FMVSS 108 Table VII, FMVSS 108 Table VIII, IEC IP69K, Regulatory Body Specification, SAE J585, SAE J586, SAE J588
0347811 Part 0347811 12-24V DOT LED Heated Turn SignalDownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, FMVSS 108 Table VII, IEC IP69K, SAE J588
0347814 Part 0347814 12-24V DOT LED Heated Turn Signal Kit with HarnessDownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, FMVSS 108 Table VII, IEC IP69K, SAE J588
0346471 Part 0346471 12-24V DOT LED Heated Reverse LightDownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, FMVSS 108 Table XII, IEC IP69K, SAE J593
0346474 Part 0346474 12-24V DOT LED Heated Reverse Light Kit with HarnessDownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, FMVSS 108 Table XII, IEC IP69K, SAE J593

Part Numbers (Non-Heated)

  Part NumberDescriptionSpecification Sheet
0347861 Part 0347861 12-24V DOT LED Non-Heated Stop & Tail LightDownloadInquireAdd to Inquiry
  Complies with: FMVSS 108 Table VII, IEC IP69K, SAE J585, SAE J586, SAE J588
0347864 Part 0347864 12-24V DOT LED Non-Heated Stop & Tail Light Kit with HarnessDownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, FMVSS 108 Table VII, IEC IP69K, SAE J585, SAE J586, SAE J588
0347871 Part 0347871 12-24V DOT LED Non-Heated Turn SignalDownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, FMVSS 108 Table VII, IEC IP69K, SAE J588
0347874 Part 0347874 12-24V DOT LED Non-Heated Turn Signal Kit with HarnessDownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, FMVSS 108 Table VII, IEC IP69K, SAE J588
0347881 Part 0347881 12-24V DOT LED Non-Heated Reverse LightDownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, FMVSS 108 Table VII, IEC IP69K, SAE J593
0347884 Part 0347884 12-24V DOT LED Non-Heated Reverse Light Kit with HarnessDownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, FMVSS 108 Table VII, IEC IP69K, SAE J593

Part Numbers (12-48V)

  Part NumberDescriptionSpecification Sheet
0346421 Part 0346421 12-48V DOT LED Non-Heated Stop & Tail LightDownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, FMVSS 108 Table IX, FMVSS 108 Table VII, FMVSS 108 Table VIII, IEC IP69K, SAE J585, SAE J586, SAE J588

Dimensions

LED Signal Light Model 234 Dimensions

Part Accessories

Part NumberDescriptionSpecification Sheet
3270501 Part 3270501 3-Pin AMP Connector (#282087-1) Wire Harness AssemblyDownloadInquireAdd to Inquiry
4242731 Part 4242731 4" Round Rubber Mounting Grommet for Model 234DownloadInquireAdd to Inquiry
5869401 Part 5869401 4" Round Plastic Mounting Flange for Model 234DownloadInquireAdd to Inquiry
8200441 Part 8200441 4" Round Stainless Steel Trim Ring for Model 234DownloadInquireAdd to Inquiry
8200451 Part 8200451 4" Round Chrome Plastic Trim Ring for Model 234DownloadInquireAdd to Inquiry
