LED Strobe Lights – Model 406

5" Round Low Profile LED Lights - Class II

Overview
Most commonly used as emergency strobe lights, the versatile Model 406 offers a mini strobe light for compact spaces.

Features

  • LED technology uses less power for longer lasting output
  • Meets Class II requirements for strobe lights (utility vehicles that work along roadsides)
  • Secure seal for marine and water exposure
  • Newer mounting pattern for easy installation
  • Industrial strobe lights also available in Class I with our Model 407

DIN Pole Mount
Model 406 offers a kit including a Model 406 strobe light, DIN pole mount and hardware to be mounted to a pole with an ISO 4165 socket. Kits ship without the mount pre-installed, since programming the flash mode must be done before applying the DIN pole mount.

Instruction Sheets
Find them under our Related Resources below.

Summary
While most of our LED strobe lights measure around 5” tall; the Model 406 is less than 4” in overall height. This provides a lower profile to suit a wider range of applications, particularly where space constraints are a concern.

The Model 406 has six different modes, which provide both flexibility and maximize visibility. This light-weight LED strobe light is also sealed to protect against exposure to water and other harsh environmental conditions, making it extremely durable.

Applications
  • Agriculture
  • Construction
  • Material Handling
  • Mining
  • Truck & Bus
Made in USAThis product meets one or more European Conformity regulatory standards. Please see the specification sheet for more details.This product meets one or more European regulatory standards. Please see the specification sheet for more details.This product is sealed to completely protect against the entry of dust and high-pressure/high-temperature jets of water in any direction.This product meets one or more Society of Automotive Engineers regulatory standards.
Share this Product
Specifications Dealer Locator
LED Strobe Light Model 406

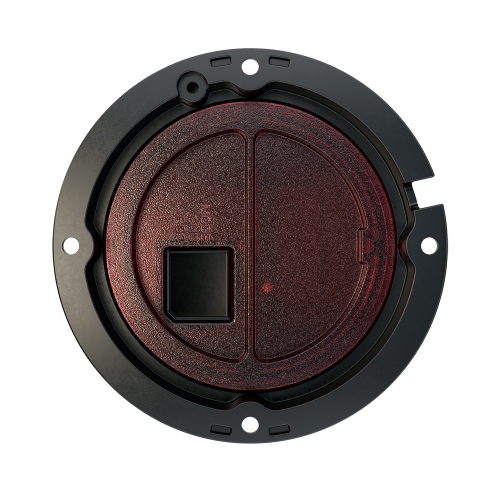

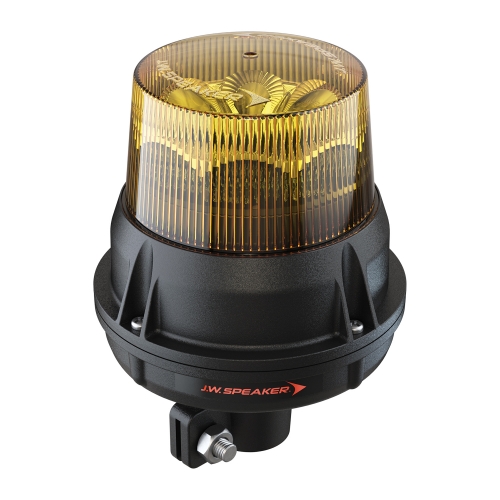

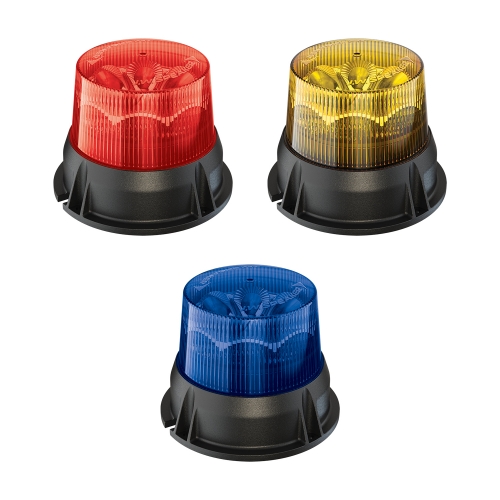

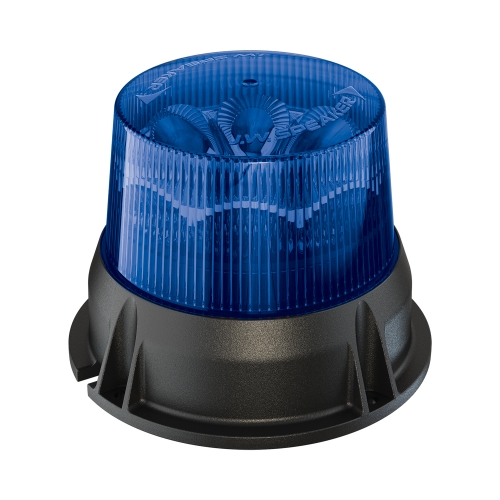

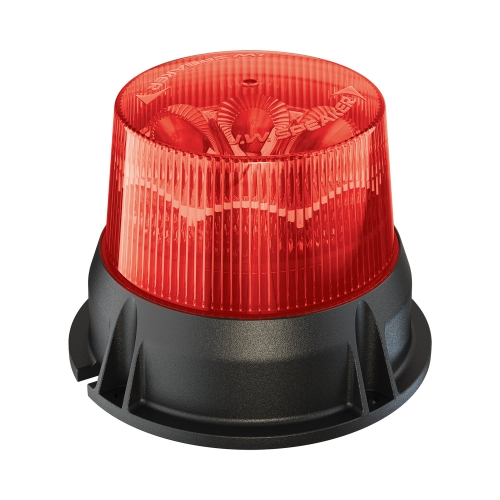

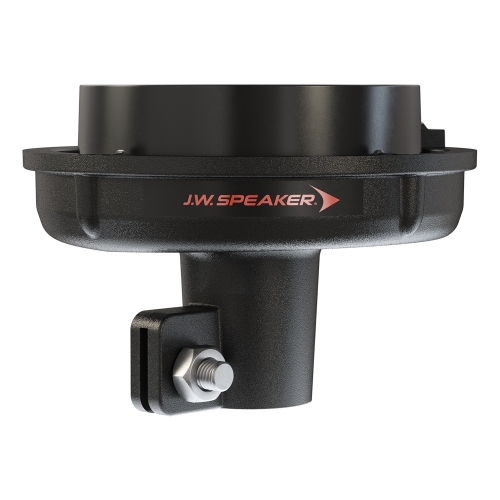

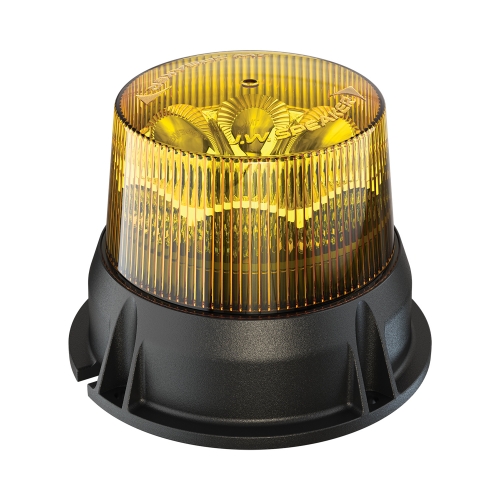

LED Strobe Light Model 406 LED Strobe Light Model 406 Amber 3/4 View LED Strobe Light Model 406 Blue 3/4 View LED Strobe Light Model 406 Red 3/4 View LED Strobe Light Model 406 Amber Side View LED Strobe Light Model 406 Amber Top View LED Strobe Light Model 406 Bottom View LED Strobe Light Model 406 DIN Mount and Light 3/4 View LED Strobe Light Model 407 DIN Mount

Part Number List

  Part NumberDescriptionSpecification Sheet
0646501 Part 0646501 12-80V LED Amber Class II Strobe LightDownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, CE Recognized, ECE Reg 10, IEC IP67, IEC IP69K, SAE J845, UL Recognized
0646541 Part 0646541 12-80V LED Red Class II Strobe LightDownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, IEC IP67, IEC IP69K, SAE J845
0646531 Part 0646531 12-80V LED Blue Class II Strobe LightDownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, IEC IP67, IEC IP69K, SAE J845
0646731 Part 0646731 12-80V LED Amber Class II Strobe Light with DIN Pole MountDownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, CE Recognized, ECE Reg 10, IEC IP67, IEC IP69K, SAE J845, UL Recognized
0646881 Part 0646881 12-80V LED Amber Class II Strobe Light with Magnet Mount & AdapterDownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, ECE Reg 10, IEC IP67, IEC IP69K, SAE J845, UL Recognized

Dimensions

LED Strobe Light Model 406 Dimensions

Part Accessories

Part NumberDescriptionSpecification Sheet
0728321 Part 0728321 Pipe Mount with Straight Bracket for DIN Pole MountDownloadInquireAdd to Inquiry
0728311 Part 0728311 Pipe Mount with L Bracket for DIN Pole MountDownloadInquireAdd to Inquiry
0728301 Part 0728301 Pipe Mount with Fold-Down Bracket for DIN Pole MountDownloadInquireAdd to Inquiry
0728331 Part 0728331 Pipe Mount with Threaded Pipe Mount for DIN Pole MountDownloadInquireAdd to Inquiry
0728341 Part 0728341 Pipe Mount with Weld-on Bracket for DIN Pole MountDownloadInquireAdd to Inquiry
8200213 Part 8200213 DIN Pole Mount for 406 & 407 LED Strobe LightsDownloadInquireAdd to Inquiry
