Introducing the EVO-X Series

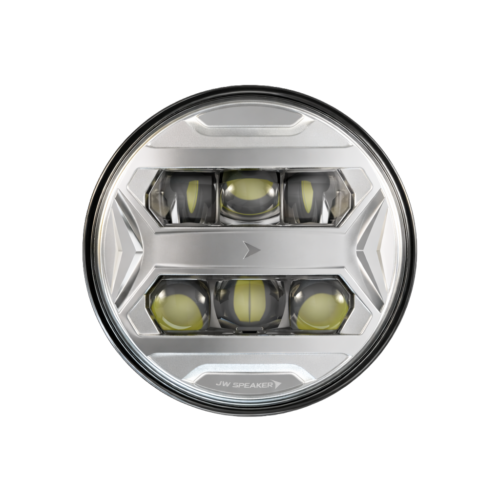

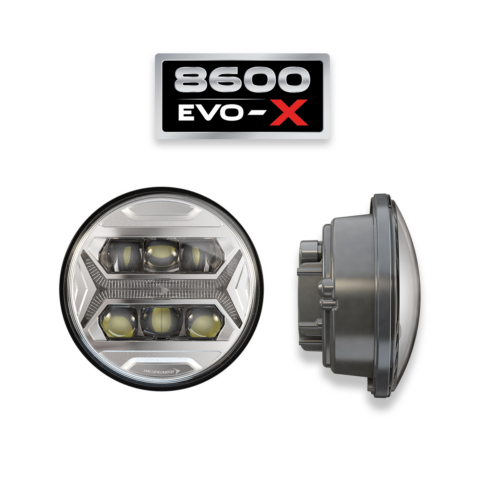

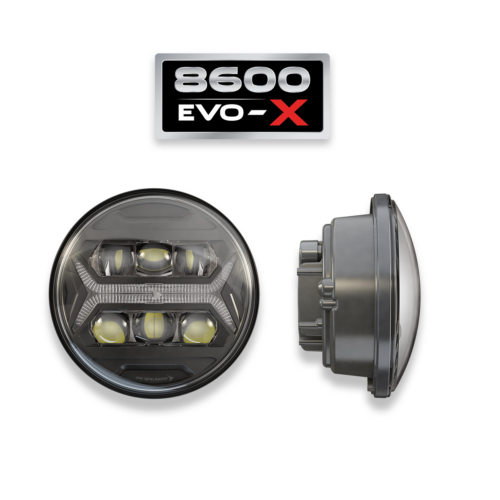

Model 8600 EVO-X Headlight

5.75″ LED headlight with 5 in 1 functions, SmartHeat® lens heating, and signature “X” styling.

Overview

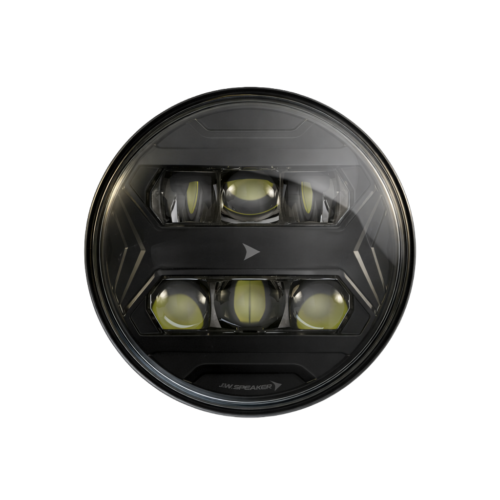

A compact, high-performance LED headlight designed for 5.75″ round PAR46 applications. The 8600 EVO X™  delivers best-in-class uniform beam patterns with clean, consistent output, improving visibility while maintaining controlled light distribution.

Built on a modular platform design, the 8600 EVO X™ supports broader applications across OEM vehicle platforms and aftermarket lighting upgrades. Designed to perform in harsh conditions, it delivers dependable illumination with full brightness at minimum voltage. The distinctive “X” optic introduces a new visual signature while maintaining the trusted performance expected from J.W. Speaker.

Features

  • Best-in-class uniform beam patterns
  • Clean, consistent output
  • Modular platform design supporting broader applications
  • All forward lighting functions; 5 in 1

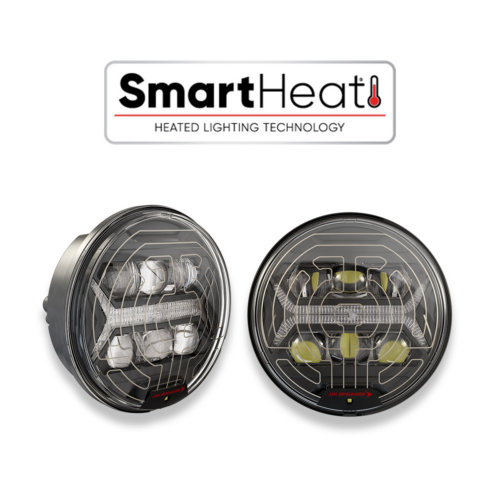

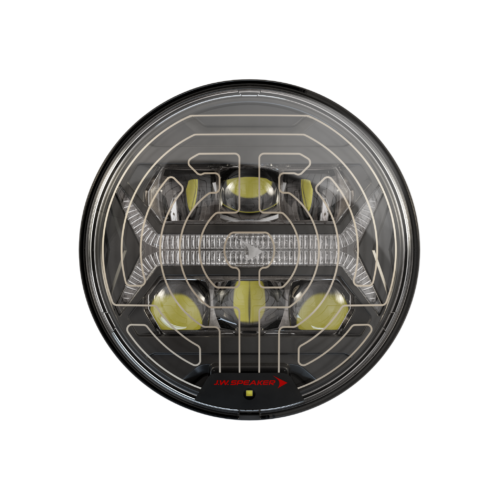

  • Industry-leading SmartHeat® technology helps prevent snow and ice buildup on the lens
  • Industry-leading J.W. Speaker Dual Burn®; low beam spread, high beam punch
  • Designed to perform in the harshest conditions
  • Full brightness at minimum voltage
  • Dual compliance – DOT & ECE (Direction indicator (DI) is not DOT compliant)
  • Buy American Act compliant

Street legal supporting DOT standards

DOT versions are for use in the U.S. DOT-compliant, guaranteeing the lights meet Section 108 requirements of the United States Federal Motor Vehicle Safety Standards. DOT compliance is clearly etched on the lens of the light.

Summary

The 8600 EVO X™  brings advanced LED lighting performance to vehicles requiring a 5.75″ round PAR46 headlight format. Its modular platform design enables broader vehicle integration while supporting all forward lighting functions; 5 in 1 in a single lighting solution.

With industry-leading SmartHeat® technology, J.W. Speaker Dual Burn® optics delivering low beam spread with high beam punch, and dual compliance – DOT & ECE, the 8600 EVO X™  provides dependable illumination for demanding on-road applications.

8600 EVO X™  –  Expand your options with modular platform design and signature “X” styling.

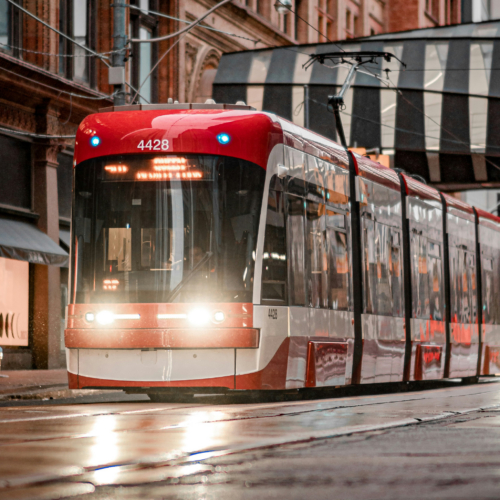

Applications
  • Agriculture
  • Automotive
  • Construction
  • Industrial
  • Mining
  • Motorcycle
  • Off-Road 4x4
  • Powersports
  • Specialty Vehicles
  • Truck & Bus
This product meets one or more FMVSS 108 standards, including DOT and Transport Canada requirementsThis product is sealed to completely protect against the entry of dust and immersion in water up to a depth of 1 meter.This product is sealed to completely protect against the entry of dust and high-pressure/high-temperature jets of water in any direction.This product meets one or more Society of Automotive Engineers regulatory standards.This product meets one or more European regulatory standards. Please see the specification sheet for more details.
Share this Product
Specifications Dealer Locator
For California residents:
⚠️ WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov.
⚠️ AVERTISSEMENT: Cancer et effet nocif sur la reproduction - www.P65Warnings.ca.gov.

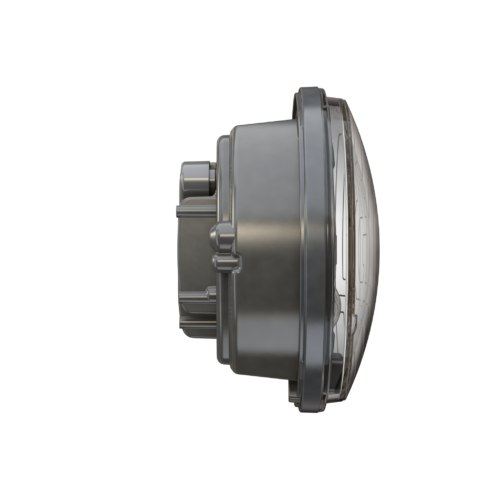

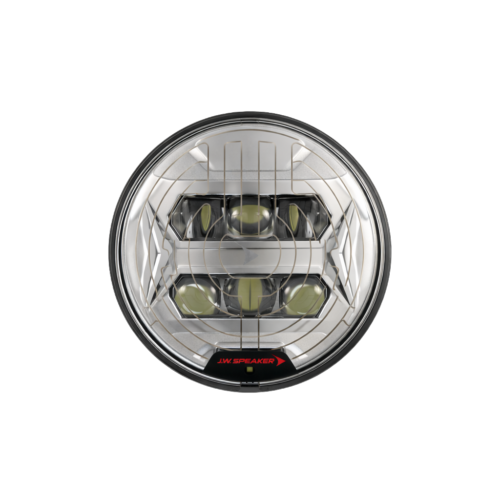

Part Numbers (Heated)

  Part NumberDescriptionRetail PricingSpec Sheet

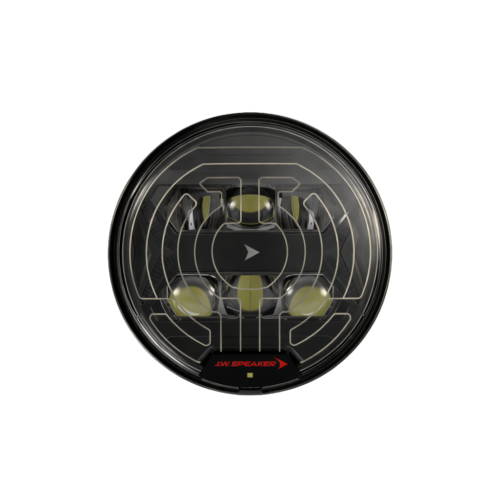

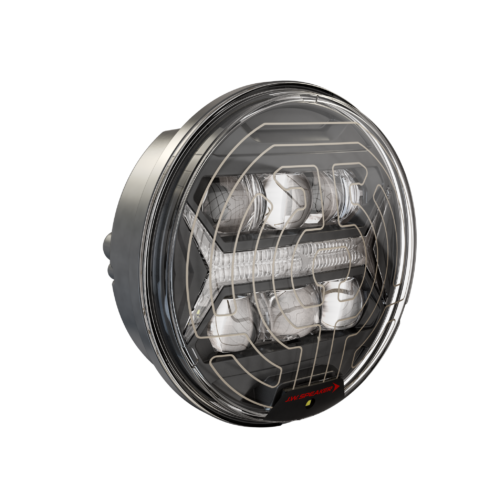

0562391 Part 0562391 12-24V DOT LED RHT High and Low Beam Heated Headlight with Black BezelDownloadPDF
  FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), IEC IP67, IEC IP69K, SAE J1383

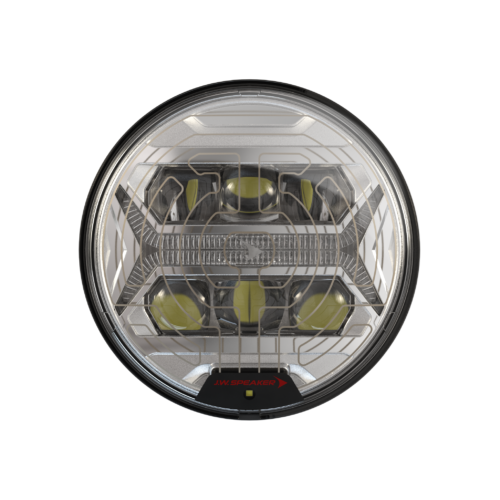

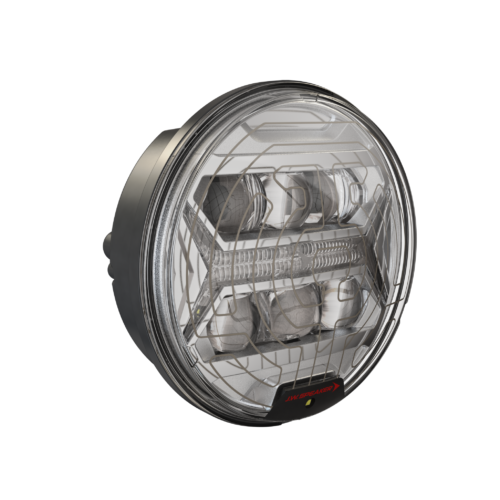

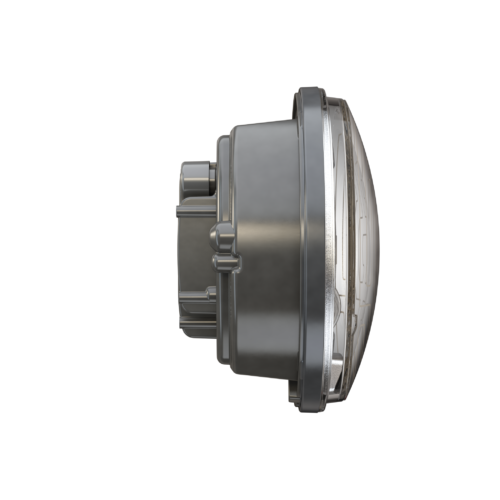

0562401 Part 0562401 12-24V DOT LED RHT High and Low Beam Heated Headlight with Chrome BezelDownloadPDF
  FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), IEC IP67, IEC IP69K, SAE J1383
0562431 Part 0562431 12-24V DOT/ECE LED RHT 5-in-1 Heated Headlight with Black BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - C, ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.10, FMVSS 108 s7.8 (Table XIV), IEC IP67, IEC IP69K, SAE J1383, SAE J2087, SAE J222
0562441 Part 0562441 12-24V DOT/ECE LED RHT 5-in-1 Heated Headlight with Chrome BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - C, ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.10, FMVSS 108 s7.8 (Table XIV), IEC IP67, IEC IP69K, SAE J1383, SAE J2087, SAE J222

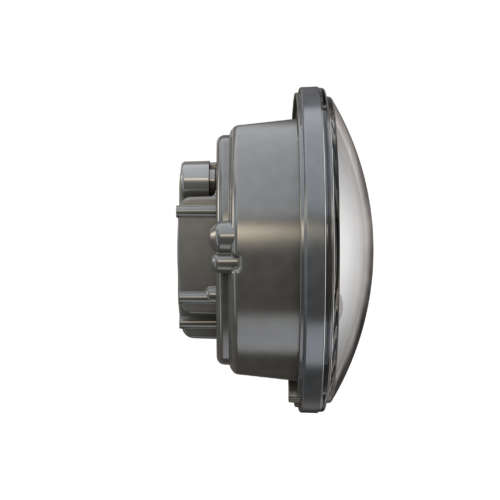

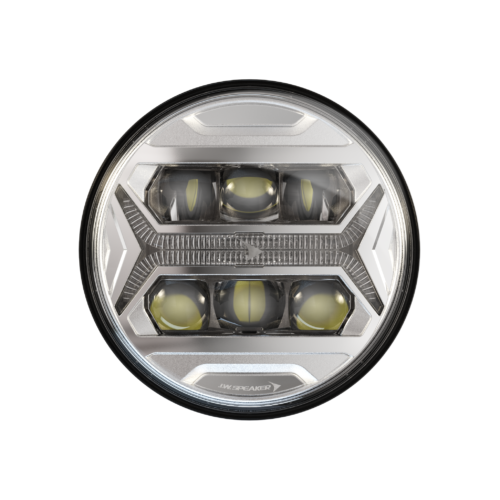

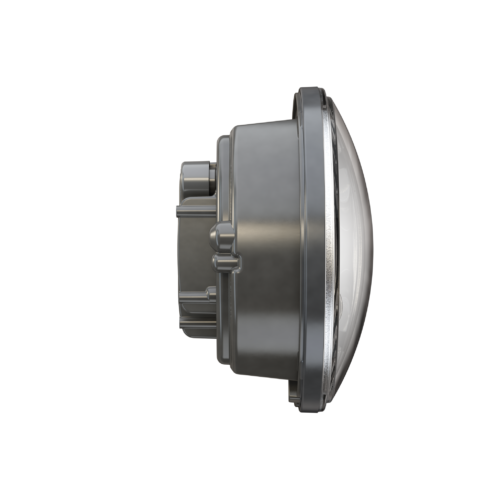

Part Numbers (Non-Heated)

  Part NumberDescriptionRetail PricingSpec Sheet

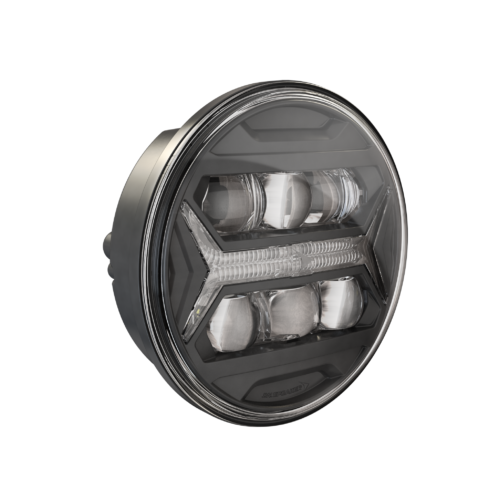

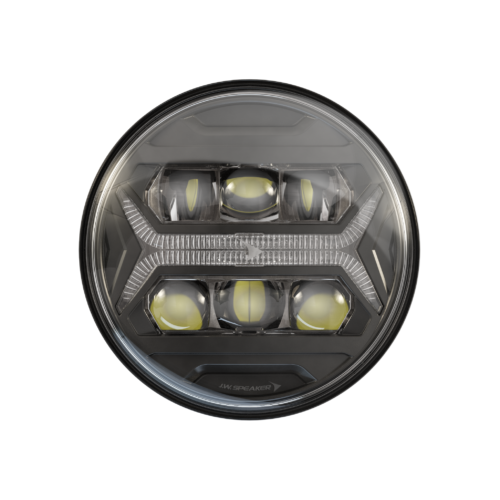

0562371 Part 0562371 12-24V DOT LED RHT High and Low Beam Headlight with Black BezelDownloadPDF
  FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), IEC IP67, IEC IP69K, SAE J1383
0562381 Part 0562381 12-24V DOT LED RHT High and Low Beam Headlight with Chrome BezelDownloadPDF
  FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), IEC IP67, IEC IP69K, SAE J1383
0562411 Part 0562411 12-24V DOT/ECE LED RHT 5-in-1 Headlight with Black BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - C, ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.10, FMVSS 108 s7.8 (Table XIV), IEC IP67, IEC IP69K, SAE J1383, SAE J2087, SAE J222
0562421 Part 0562421 12-24V DOT/ECE LED RHT 5-in-1 Headlight with Chrome BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - C, ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.10, FMVSS 108 s7.8 (Table XIV), IEC IP67, IEC IP69K, SAE J1383, SAE J2087, SAE J222
0562451 Part 0562451 12-24V DOT/ECE LED High & Symmetric Low Beam Headlight with Black BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - A, ECE Reg 149 - WC-DS, ECE Reg 149 - WR-DS, FMVSS 108 s10.1 (Table XX), FMVSS 108 s7.8 (Table XIV), IEC IP67, IEC IP69K, SAE J222, SAE J584
0562461 Part 0562461 12-24V DOT/ECE LED High & Symmetric Low Beam Headlight with Chrome BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - A, ECE Reg 149 - WC-DS, ECE Reg 149 - WR-DS, FMVSS 108 s10.1 (Table XX), FMVSS 108 s7.8 (Table XIV), IEC IP67, IEC IP69K, SAE J222, SAE J584
0562661 Part 0562661 12-24V ECE LED LHT 5-in-1 Headlight with Black BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - C, ECE Reg 149 - HR, IEC IP67, IEC IP69K
0562671 Part 0562671 12-24V ECE LED LHT 5-in-1 Headlight with Chrome BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - C, ECE Reg 149 - HR, IEC IP67, IEC IP69K
