LED Work Light – Model 680 XD

5.75" Round LED Work Lamps

The Model 680 XD has a higher light output and comes in a slimmer but more durable housing than our previous PAR46 work lights. It is constructed of a polycarbonate housing and lens that make it extremely durable.

  • UV-resistant polycarbonate lens
  • Universal mount
Applications
  • Agriculture
  • Automotive
  • Construction
  • Industrial
  • Material Handling
  • Mining
  • Off-Road 4x4
  • Railroad
  • Specialty Vehicles
  • Truck & Bus
Made in USAThis product is sealed to completely protect against the entry of dust and high-pressure/high-temperature jets of water in any direction.This product meets one or more Society of Automotive Engineers regulatory standards.
Share this Product
Specifications Dealer Locator

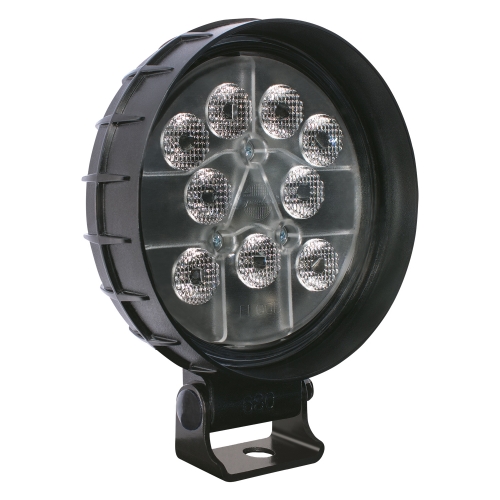

LED Work Light Model 680 XD 3/4 View

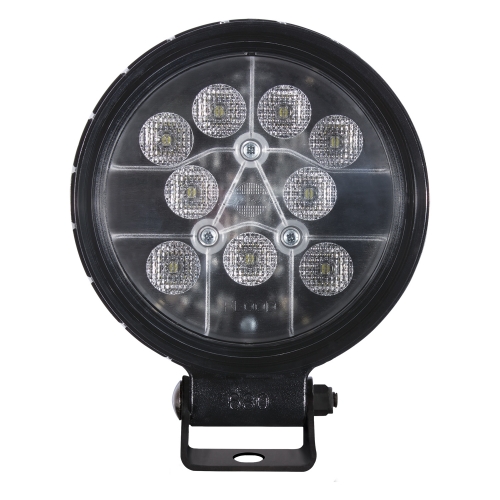

LED Work Light Model 680 XD 3/4 View LED Work Light Model 680 XD Front View
For California residents:
⚠️ WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov.
⚠️ AVERTISSEMENT: Cancer et effet nocif sur la reproduction - www.P65Warnings.ca.gov.

Part Number List

  Part NumberDescriptionPrice (U.S. only)Spec Sheet
1501641 Part 1501641 12-24V LED Work Light with Flood Beam PatternDownloadPDF
  Complies with: Buy America Standards, CISPR 12, CISPR 22, IEC IP69K, SAE J1113-13, Tested to ECE Reg. 10 (Radiated Emissions only)
1501661 Part 1501661 12-24V LED Work Light with Spot Beam PatternDownloadPDF
  Complies with: Buy America Standards, CISPR 12, CISPR 22, IEC IP69K, SAE J1113-13, Tested to ECE Reg. 10 (Radiated Emissions only)
1501651 Part 1501651 12-24V LED Work Light with Trapezoid Beam PatternDownloadPDF
  Complies with: Buy America Standards, CISPR 12, CISPR 22, IEC IP69K, SAE J1113-13, Tested to ECE Reg. 10 (Radiated Emissions only)

Dimensions

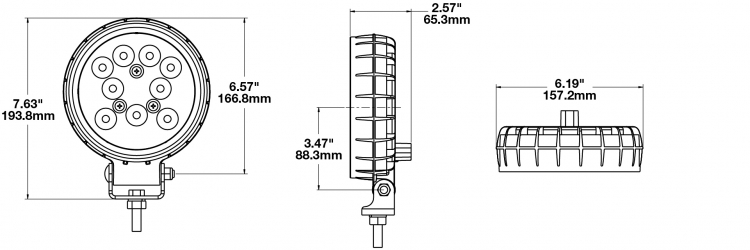

LED Work Light Model 680 XD Dimensions

Part Accessories

Part NumberDescriptionPrice (U.S. only)Spec Sheet
8200011 Part 8200011 Magnet Mount Kit for XD Series Work LightsDownloadPDF
8200101 Part 8200101 Stainless Steel Mounting Kit for Work Lights & Marine LightsDownloadPDF
8200121 Part 8200121 Black Mount Kit for XD Series Work LightsDownloadPDF
