LED Work Light & Turn Signal – Model 775 XD

LED Work Light & Turn Signal – Model 775 XD

3" x 5" Combination Work Lamp & Turn Signal

The Model 775 XD is a great choice for material handling use, or any application where a durable and combined spot beam work light and turn signal light is required. The polycarbonate housing and lens are sealed to IP67.

LED work light with turn signal
White LEDs for visibility & amber flashers for turn signal functionality
UV-resistant polycarbonate lens
Rugged solid state LEDs can withstand shock & vibration
Tough polycarbonate housing prevents rust & corrosion
Universal mount

Applications

Agriculture
Construction
Industrial
Material Handling
Mining
Off-Road 4x4
Railroad
Specialty Vehicles
Truck & Bus

This product meets one or more European regulatory standards. Please see the specification sheet for more details.

Specifications Dealer Locator

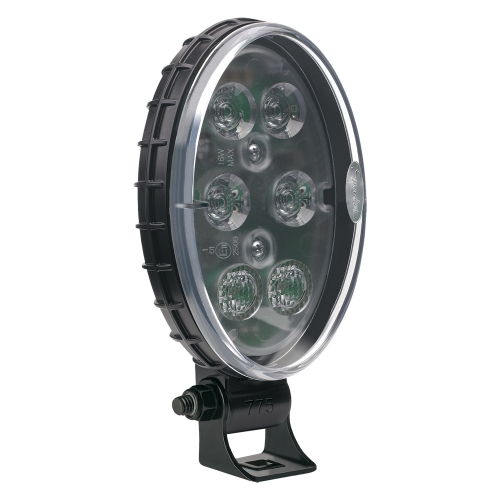

LED Work Light and Signal Model 775 XD 3/4 View

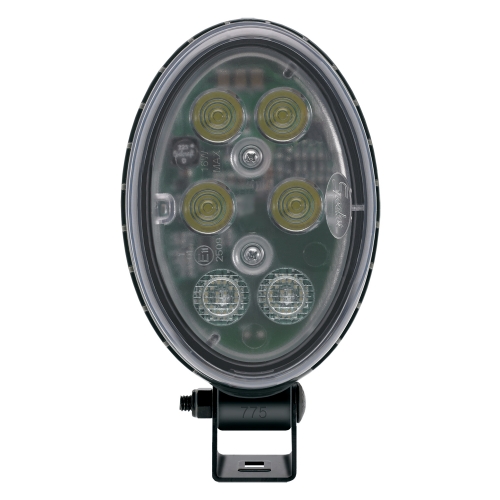

LED Work Light and Signal Model 775 XD Front View

Part Number List

Part Number	Description	Price (U.S. only)	Spec Sheet
1706301	Part 1706301 12-48V LED Work Light with Spot Beam & Turn Signal		DownloadPDF
Complies with: Buy America Standards, CISPR 12, CISPR 22, ECE Reg 6, IEC IP67, UL Recognized

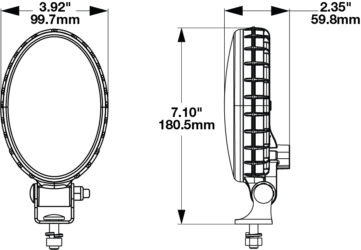

Dimensions

Part Accessories

Part Number	Description	Price (U.S. only)	Spec Sheet
8200011	Part 8200011 Magnet Mount Kit for XD Series Work Lights		DownloadPDF
8200101	Part 8200101 Stainless Steel Mounting Kit for Work Lights & Marine Lights		DownloadPDF
