Blue safety lights are used to make moving equipment and potential hazards more noticeable in busy work environments. By projecting a concentrated beam or visible safety zone onto the ground, they can help alert pedestrians and other workers to the presence and path of vehicles such as forklifts, work trucks, and construction equipment.

The right safety light depends on the application. The goal, though, is pretty simple: make it easier for people to see where equipment is and where it’s going.

The Quick Take: Why Blue Safety Lights Matter

In a warehouse, construction site, mine, or other busy work area, equipment and workers are often moving around at the same time.

That can make it difficult for pedestrians to know when a forklift or other vehicle is approaching, especially when the vehicle itself is carrying a load or operating in an area where visibility is limited.

That’s where safety-zone lighting comes in. Instead of relying on a verbal warning or hoping someone notices the vehicle, a safety light puts a visual signal right where people need to see it.

Where Are Blue Safety Lights Used?

Blue safety lights are especially common on forklifts and material handling equipment, where pedestrians and vehicles often work in close proximity.

But forklifts aren’t the only application. Safety-zone lighting can also be used on:

• Construction vehicles
• Work trucks
• Farm equipment
• Mining equipment
• Railroad equipment
• Industrial vehicles
• Specialty vehicles
• Stationary equipment and objects

The specific light and beam pattern can vary depending on what needs to be marked and where the equipment is operating.

Forklifts and Material Handling Equipment

Forklift safety is one of the clearest applications for blue safety lighting. The Model 77 Blue Spot Safety Light is designed specifically for forklifts and material handling equipment. It projects a bright, highly concentrated blue beam onto the ground in the direction the forklift is moving.

That gives pedestrians a visual indication that a forklift is approaching, even before the vehicle itself enters their immediate field of view.

The Model 77 Blue also has a compact, low-profile design and a universal mounting bracket, making it straightforward to install on a variety of equipment. Its polycarbonate lens and housing are impact- and corrosion-resistant, while an IP69K rating protects the light against dust and high-pressure water.

For applications where connection options matter, the Model 77 Blue is available with either a Deutsch or AMP connector.

Creating a “Keep-Out” Zone Around Moving Equipment

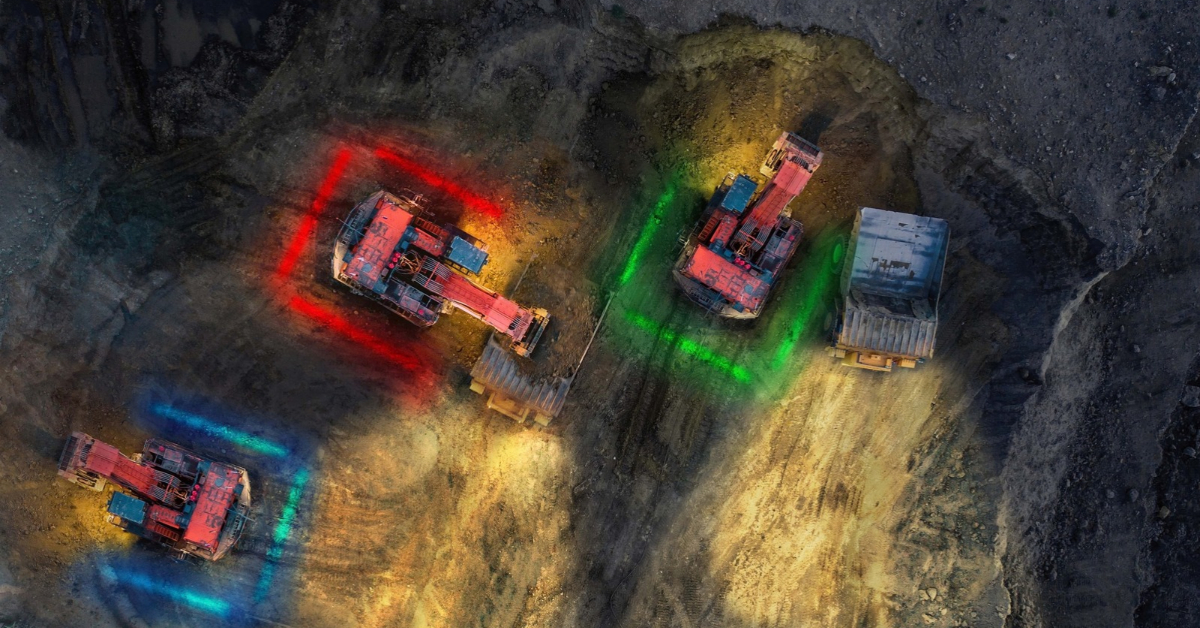

Sometimes the goal isn’t just to show where a vehicle is. It’s to show people where they shouldn’t be. The Model 777 GEN 2 is designed around that idea. Its high-powered LED beam creates a visible “keep out” zone around forklifts, work trucks, construction vehicles, farm equipment, and other equipment.

The compact beam pattern makes it a good fit when you need to clearly mark an area around moving equipment. The Model 777 GEN 2 is also 50% brighter than the first-generation Model 777 Arc warning light, while its more compact design makes installation easier.

For a more complete safety setup, J.W. Speaker also offers the ability to mount one light at the front and one at the rear of a vehicle. The 777 can also be combined with a linear safety light to create a broader safety package.

When You Need a Safety Zone on a Vehicle or Stationary Object

Not every safety application looks the same. The Model 793 LED Safety Light is designed to create a visible keep-out or keep-away zone and can be used on vehicles or around stationary objects. Its adjustable aiming makes it easier to position the beam where it’s needed.

The Model 793 is also built for demanding environments. It has a rugged, weather-resistant design, strong thermal management, and an IP67 and IP69K rating. It’s also UL Recognized.

For applications where certification is a requirement for market entry, that distinction can matter just as much as the light itself.

Creating a Larger Visual Boundary

Some applications call for something more substantial than a concentrated spot. The Model 529 LED Big Stripe takes the same general safety-zone concept and expands it into a highly visible strip of light. Its 4″ x 19″ design projects a bright safety strip that creates a keep-out zone around equipment. That makes it particularly useful for identifying dangerous areas on construction and mining sites, as well as in agriculture, material handling, and railroad applications.

The Model 529 can be mounted on a vehicle or stationary object using its versatile pedestal mount. It’s available in red, blue, and green, and it also has an optional 1 Hz flashing sequence for applications where an additional visual warning is needed.

Its solid-optic design, die-cast aluminum housing, stainless steel mounting bracket, and durable polycarbonate lens are built to handle demanding environments. The light is rated to IP67 and IP69K and complies with ECE Reg. 10.

Choosing the Right Safety Light

There’s no single safety light that works for every application. A forklift operating inside a warehouse may need a concentrated blue spot that projects directly onto the floor. A construction vehicle may need a larger keep-out zone. A piece of equipment operating around a stationary hazard may require a light that can be aimed exactly where it’s needed.

That’s why it’s worth looking at more than just brightness. Think about:

Beam pattern: Do you need a concentrated spot, a defined zone, or a longer strip of light?

Mounting: Will the light be installed on a vehicle or a stationary object? Does the application require adjustable aiming?

Environment: Dust, water, vibration, temperature changes, and other jobsite conditions can all affect long-term performance.

Voltage: Equipment doesn’t all operate on the same electrical system. The Model 777, for example, supports a 10-80V range for use across a variety of applications.

Built for the Work Environment

Safety lights have a pretty straightforward job, but they don’t get an easy one. They can spend their days around dust, water, vibration, impacts, temperature changes, and heavy equipment. A light that works well in a controlled environment isn’t necessarily going to hold up on a working jobsite.

That’s why J.W. Speaker safety lights are designed with those conditions in mind. Across the Model 77, 777, 793, and 529, features such as sealed construction, durable polycarbonate lenses, weather resistance, and high IP ratings help protect the lights in demanding environments.

Why J.W. Speaker for Safety Lighting?

Operators and pedestrians need to know where equipment is and where it’s moving. The right safety light gives them another clear way to see that.

J.W. Speaker’s safety lighting lineup gives customers different ways to do that, from the concentrated blue spot of the Model 77 to the defined keep-out zones of the Model 777 and 793 and the larger visual boundary created by the Model 529.

The application may change, but the goal of giving operators and pedestrians a clearer view of what’s happening around moving equipment stays the same.

Frequently Asked Questions

What is a blue safety light used for?

Blue safety lights are commonly used to create a visible warning or safety zone around moving equipment. They’re particularly useful on forklifts and other material handling equipment to alert pedestrians that a vehicle is approaching.

Why are blue lights used on forklifts?

A concentrated blue beam projected onto the floor gives pedestrians a visual indication of an approaching forklift and can help make the vehicle’s presence more noticeable in busy work environments.

Where else can safety-zone lights be used?

Safety-zone lights can be used on construction vehicles, work trucks, farm equipment, mining and railroad equipment, specialty vehicles, and even around stationary objects.

Can safety lights be used on equipment other than forklifts?

Yes. J.W. Speaker safety lights are designed for a range of applications. Models such as the 777, 793, and 529 can be used in construction, agriculture, industrial, mining, railroad, material handling, and specialty equipment.

Are J.W. Speaker safety lights available in colors other than blue?

Yes. Depending on the model, J.W. Speaker safety lights are available in red, green, and amber configurations.

Get in Touch

A safety light doesn’t replace standard operating practices or other safety procedures. These lights make moving equipment more visible and give the people around it a clear signal to pay attention.

Whether you need a concentrated blue spot for a forklift, a defined keep-out zone, or a larger safety strip, J.W. Speaker has LED safety lighting designed for the job.

Explore the J.W. Speaker World of Safety or contact our team to find the right lighting solution for your application.
