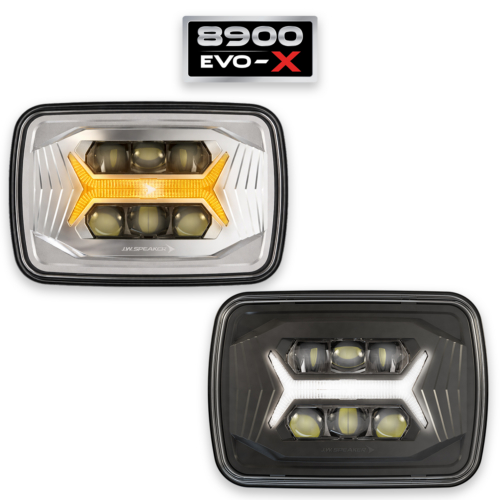

Introducing the EVO-X Series

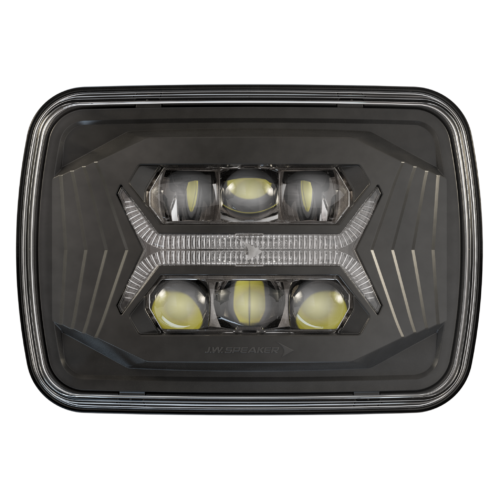

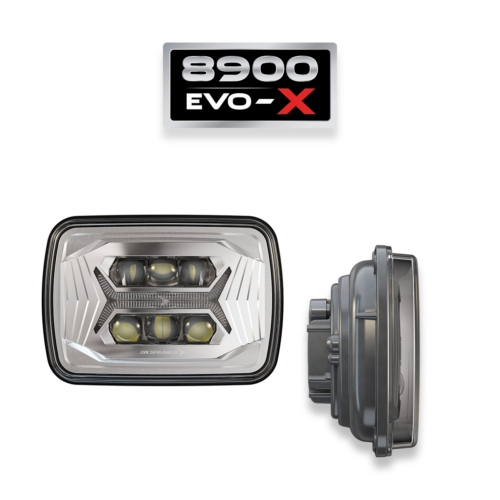

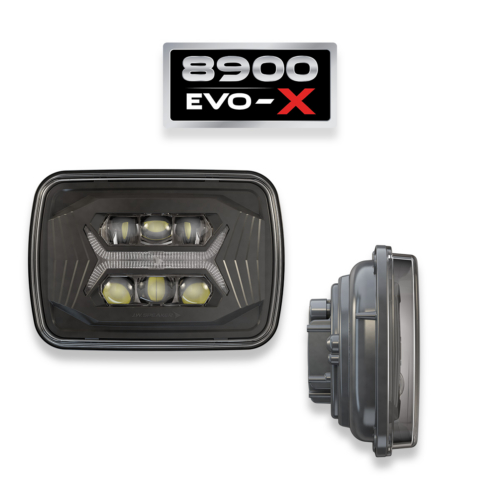

Model 8900 EVO-X Headlight

5″×7″ LED headlight with best in class precision beam performance and 5 in 1, street legal forward lighting.

Overview

A high-performance LED headlight designed for 5″ x 7″ applications; the 8900 EVO X™ delivers best-in-class precision beam performance with bold presence in a widely used headlight format. Featuring the unmistakable “X” optic, the 8900 EVO X™ combines advanced lighting performance with a distinctive visual signature that enhances vehicle appearance.

Built with all-in-one functionality, the 8900 EVO X™ simplifies vehicle integration across OEM programs and aftermarket upgrades. With simple plug-and-play installation across model years and full brightness at minimum voltage, the 8900 EVO X™ provides dependable illumination with durable performance built to outlast in real-world conditions.

Features

  • Smooth homogeneous pattern spread, no streaks or dark spots
  • Bold presence and built to outlast
  • All-in-one functionality
  • Best-in-class precision beam performance
  • All forward lighting functions; 5 in 1

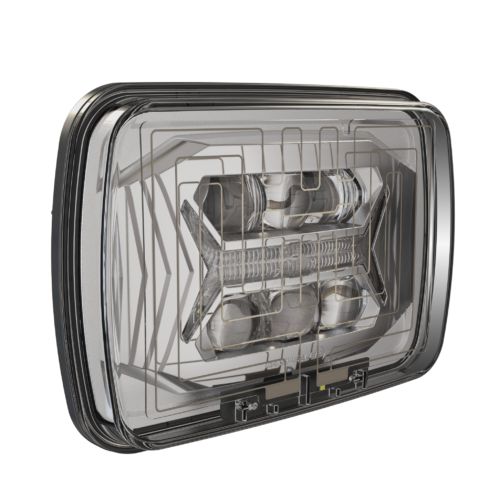

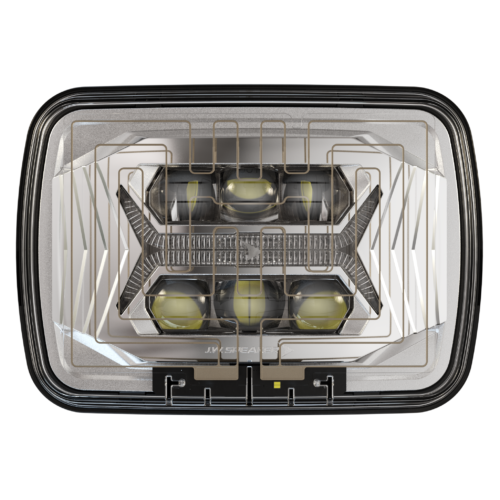

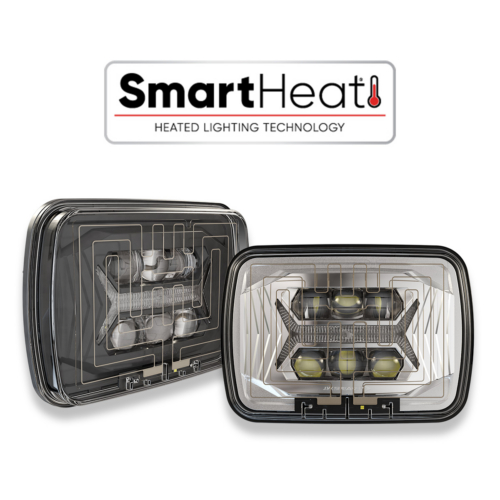

  • Industry-leading SmartHeat® technology helps prevent snow and ice buildup on the lens
  • J.W. Speaker Dual Burn®; low beam spread, high beam punch
  • Designed to perform in the harshest conditions
  • Full brightness at minimum voltage
  • Decreased part weight
  • Simple plug-and-play installation across model years
  • Dual compliance – DOT & ECE (Direction indicator (DI) is not DOT compliant)
  • Buy American Act compliant

Street legal supporting DOT standards

DOT versions are for use in the U.S. DOT-compliant, guaranteeing the lights meet Section 108 requirements of the United States Federal Motor Vehicle Safety Standards. DOT compliance is clearly etched on the lens of the light.

Summary

The 8900 EVO X™ delivers maximum presence in a 5″ x 7″ LED headlight format designed for both OEM vehicle programs and aftermarket upgrades. Its best-in-class precision beam performance enhances front-end appearance while supporting dependable lighting performance across demanding applications.

With All forward lighting functions; 5 in 1, industry-leading SmartHeat® technology, and J.W. Speaker Dual Burn® optics delivering low beam spread with high beam punch, the 8900 EVO X™ provides dependable illumination for demanding on-road environments.

8900 EVO X™ – Maximum presence with best-in-class precision beam performance in a proven 5″ x 7″ platform.

Applications
  • Agriculture
  • Automotive
  • Construction
  • Industrial
  • Material Handling
  • Mining
  • Off-Road 4x4
  • Railroad
  • Specialty Vehicles

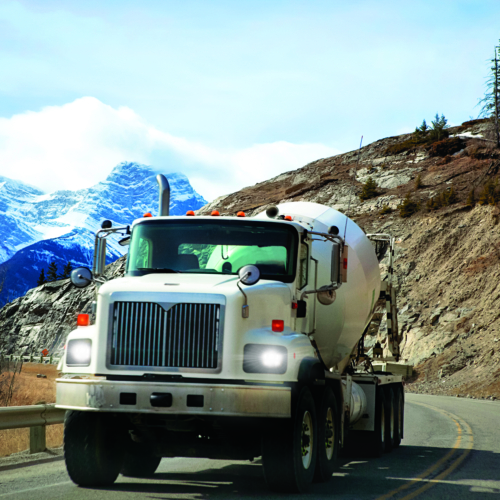

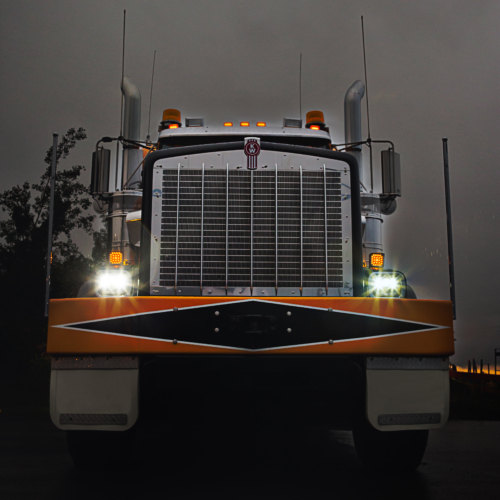

  • Truck & Bus
This product meets one or more European regulatory standards. Please see the specification sheet for more details.This product meets one or more FMVSS 108 standards, including DOT and Transport Canada requirementsThis product is sealed to completely protect against the entry of dust and immersion in water up to a depth of 1 meter.This product is sealed to completely protect against the entry of dust and high-pressure/high-temperature jets of water in any direction.This product meets one or more Society of Automotive Engineers regulatory standards.
Share this Product
Specifications Dealer Locator
For California residents:
⚠️ WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov.
⚠️ AVERTISSEMENT: Cancer et effet nocif sur la reproduction - www.P65Warnings.ca.gov.

Part Numbers (Non-Heated)

  Part NumberDescriptionRetail PricingSpec Sheet

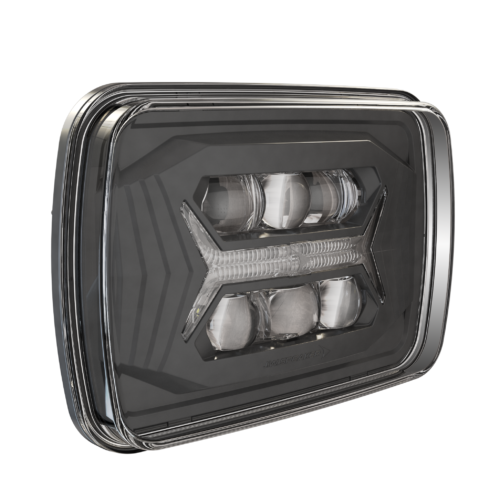

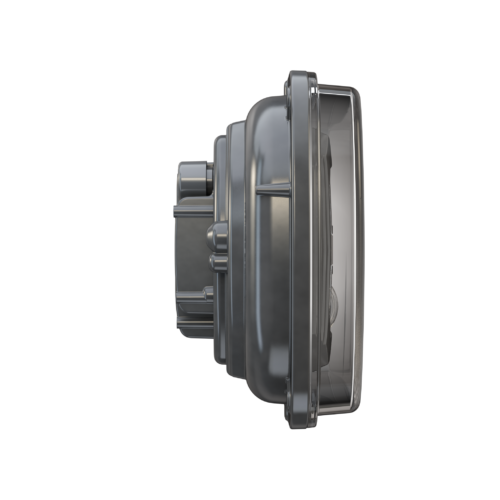

0562471 Part 0562471 12-24V DOT/ECE LED RHT 5-in-1 Headlight with Black BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - C, ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.10, FMVSS 108 s7.8 (Table XIV), IEC IP67, IEC IP69K, SAE J1383, SAE J2087, SAE J222

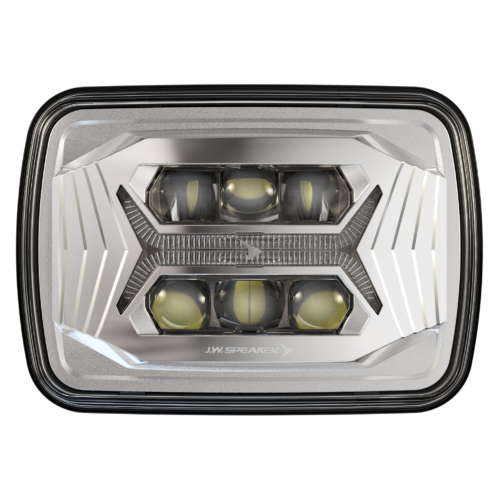

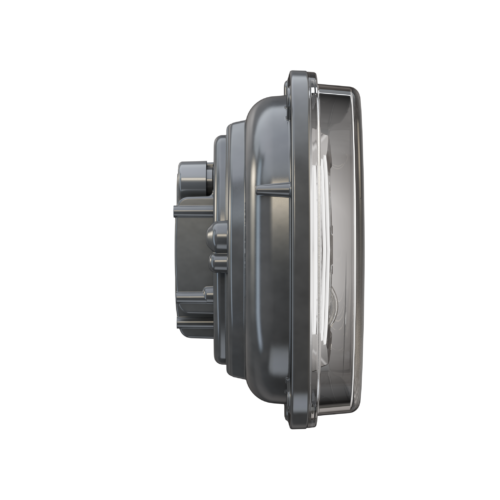

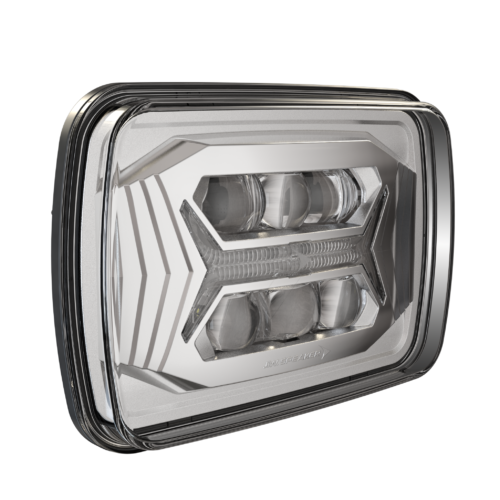

0562481 Part 0562481 12-24V DOT/ECE LED RHT 5-in-1 Headlight with Chrome BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - C, ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.10, FMVSS 108 s7.8 (Table XIV), IEC IP67, IEC IP69K, SAE J1383, SAE J2087, SAE J222
0562591 Part 0562591 12-24V DOT/ECE LED RHT High & Low Beam Headlight with Front Position with Black BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - A, ECE Reg 149 - C, ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.8 (Table XIV), IEC IP67, IEC IP69K, SAE J1383, SAE J222
0562601 Part 0562601 12-24V DOT/ECE LED RHT High & Low Beam Headlight with Front Position with Chrome BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - A, ECE Reg 149 - C, ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.8 (Table XIV), IEC IP67, IEC IP69K, SAE J1383, SAE J222
0562721 Part 0562721 12-24V ECE LED LHT High and Low Beam Headlight with Front Position with Black BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - A, ECE Reg 149 - C, ECE Reg 149 - HR, IEC IP67, IEC IP69K
0562731 Part 0562731 12-24V ECE LED LHT High and Low Beam Headlight with Front Position with Chrome BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - A, ECE Reg 149 - C, ECE Reg 149 - HR, IEC IP67, IEC IP69K

Part Numbers (Heated)

  Part NumberDescriptionRetail PricingSpec Sheet

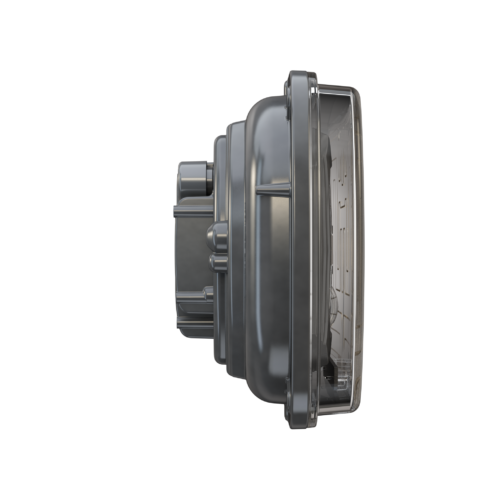

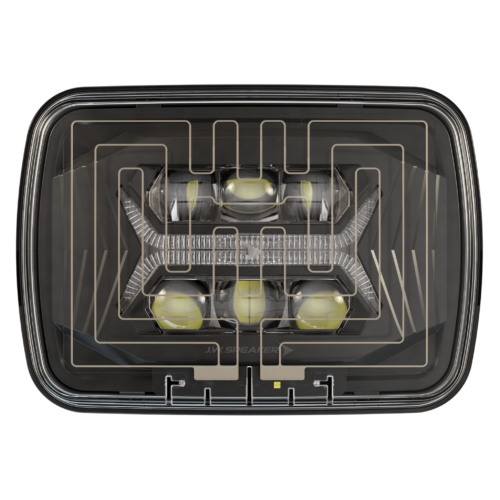

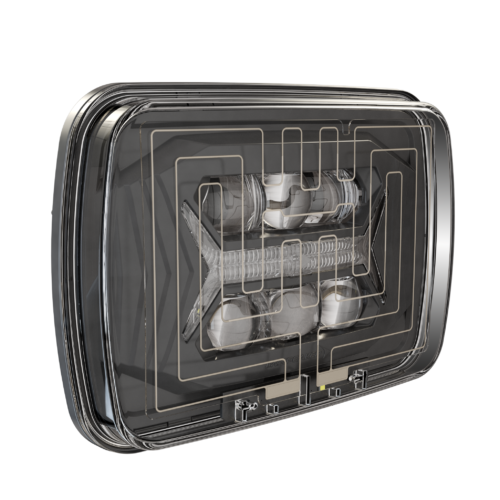

0562491 Part 0562491 12-24V DOT/ECE LED RHT 5-in-1 Heated Headlight with Black BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - C, ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.10, FMVSS 108 s7.8 (Table XIV), IEC IP67, IEC IP69K, SAE J1383, SAE J2087, SAE J222
0562501 Part 0562501 12-24V DOT/ECE LED RHT 5-in-1 Heated Headlight with Chrome BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - 1b, ECE Reg 148 - A, ECE Reg 148 - RL, ECE Reg 149 - C, ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.10, FMVSS 108 s7.8 (Table XIV), IEC IP67, IEC IP69K, SAE J1383, SAE J2087, SAE J222
0562611 Part 0562611 12-24V DOT/ECE LED RHT High & Low Beam Heated Headlight with Front Position with Black BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - A, ECE Reg 149 - C, ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.8 (Table XIV), IEC IP67, IEC IP69K, SAE J1383, SAE J222
0562621 Part 0562621 12-24V DOT/ECE LED RHT High & Low Beam Heated Headlight with Front Position with Chrome BezelDownloadPDF
  ECE Reg 10, ECE Reg 148 - A, ECE Reg 149 - C, ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.8 (Table XIV), IEC IP67, IEC IP69K, SAE J1383, SAE J222
