LED Headlights – Model 8910 Evolution 2

Heated 5" x 7" Headlights

Overview:
The 8910 Evolution 2 provides a high performance 5×7″ LED headlight, available with a SmartHeat™ heated lens and Dual Burn™ technology!

Features:

  • Dual Burn™ high beam optics for extra punch of light
  • Available with SmartHeat™ Technology that automatically de-ices headlight according to ambient temperature
  • Meets proposed National Highway Transportation Safety Administration (NHTSA) guidelines for a 5-Star NCAP-compliant low beam headlight
  • Drop-in replacement heated LED headlights for typical buckets/panels used in heavy-duty trucks
  • Tough, die-cast aluminum housing, with added protection from salt spray for efficient thermal management
  • Superior condensation management
  • Street legal supporting DOT, Transport Canada ECE and Military standards & requirements
  • Also available in a non-heated version (Model 8900 Evolution 2)

5-Star NCAP-compliant Technology:
The Model 8910 Evolution 2 will exceed the proposed FMVSS 108 standard in at least these three criteria, meeting 5-Star compliance:

    1. Light output, measured in lux
    2. Beam pattern, resulting in minimal glare
    3. Light placement, as dictated by mounting locations prescribed for vehicles

Dual Burn™ Technology:
Not your average high beam! Dual Burn technology goes beyond the average high beam pattern with a three-part beam pattern designed to help people see better and stay safe. Read more.

SmartHeat™ Heating System:
This heated LED headlight – Model 8910 Evolution 2 features a thermally conductive grid system that will de-ice the lens up to twice as fast as other lights. This intelligent system reacts to temperature changes on a real-time basis with no action required by the driver.

Street legal supporting DOT, ECE and Military standards:
DOT versions are for use in the U.S. DOT-compliant guarantees that your lights are legal on the road, meeting section 108 requirements of the Federal Motor Safety Standards. Your DOT-compliance is clearly etched on the lens of the light.

ECE versions are for use outside of the U.S. ECE-compliant guarantees your lights are compliant in the European Union and in non-European countries that have adopted ECE Regulations for visibility, durability, and reliability.

Summary:
The 8910 Evolution 2 heated LED headlights provide a high performance safety solution with improved light output, and glare reduction, and are now available with SmartHeat™ heated lenses!

*When installed on vehicles at gross weight with headlights at 0.8—1.2m off the ground.
Applications
  • Construction
  • Mining
  • Off-Road 4x4
  • Specialty Vehicles
  • Truck & Bus
Made in USAThis product meets one or more European regulatory standards. Please see the specification sheet for more details.This product meets one or more FMVSS 108 standards, including DOT and Transport Canada requirementsThis product is sealed to completely protect against the entry of dust and high-pressure/high-temperature jets of water in any direction.
Share this Product
Specifications Dealer Locator

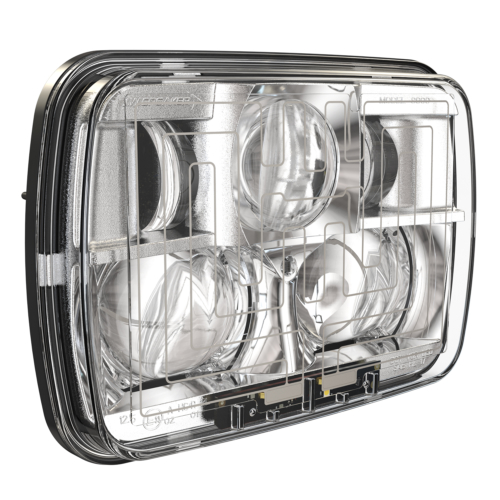

Led Headlight Model 8910 EVO 2 Heated Lens Chrome 3/4 View

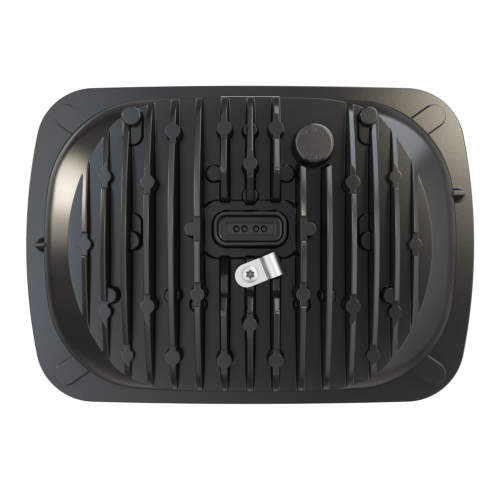

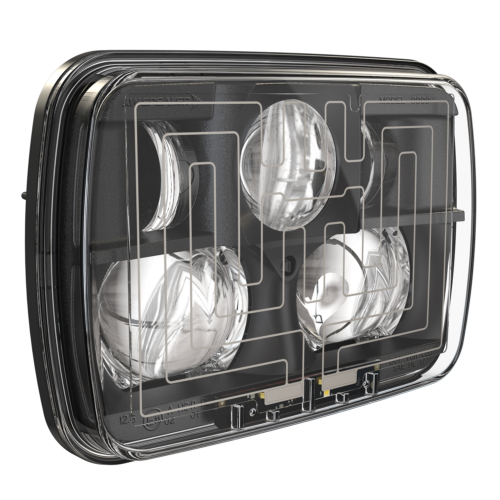

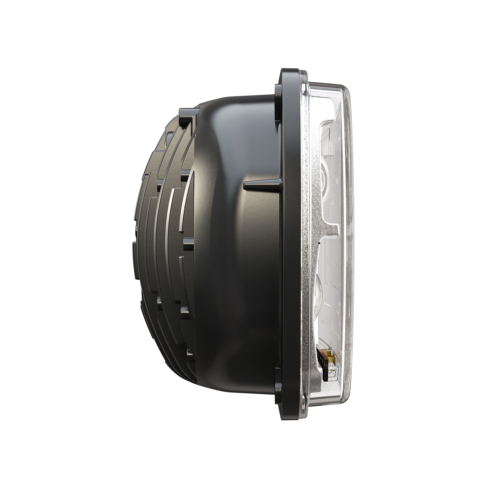

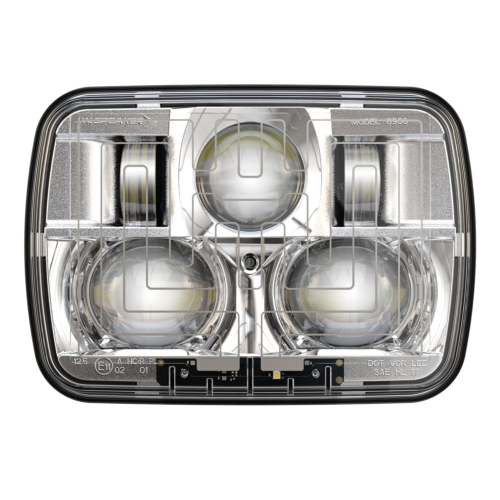

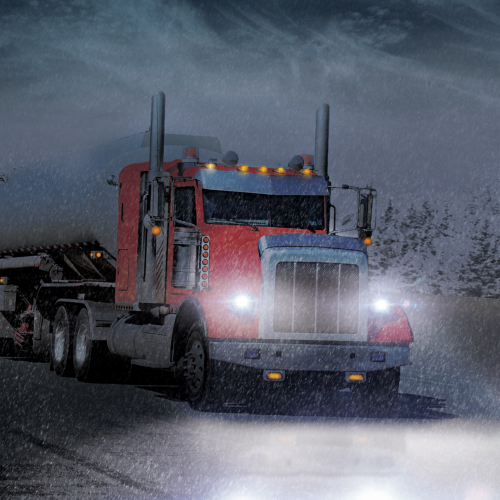

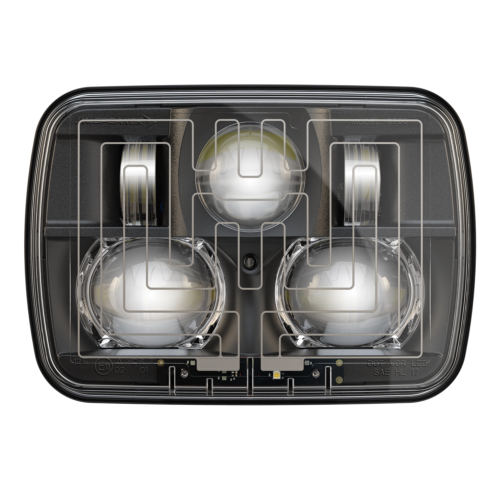

Led Headlight Model 8910 EVO 2 Heated Lens Chrome 3/4 View LED Headlight Model 8910 EVO 2 Heated Lens Chrome Front View LED Headlight Model 8910 EVO 2 Heated Lens Black 3/4 View LED Headlight Model 8910 EVO 2 Heated Lens Black Front View LED Headlight Model 8910 EVO 2 Heated Lens Chrome Side View LED Headlight Model 8910 EVO 2 Heated Back Side LED Model 8910 Heated Lens on Road

Part Numbers (Heated)

  Part NumberDescriptionSpecification Sheet
0554461 Part 0554461 12-24V DOT/ECE LED RHT High & Low Beam Heated Headlight with Chrome Inner BezelDownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, ECE Reg 112, ECE Reg 7, FMVSS 108 Table XIX, FMVSS 108 Table XVIII, IEC IP69K
0554481 Part 0554481 12-24V DOT/ECE LED RHT High & Low Beam Heated Headlight with Black Inner BezelDownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, ECE Reg 112, ECE Reg 7, FMVSS 108 Table XIX, FMVSS 108 Table XVIII, IEC IP69K

ECE (Heated)

ECE versions are not for use in the U.S. ECE-compliant guarantees your lights are compliant in the European Union and in non-European countries. Read more…

What is LHT? LHT means “Left Hand Traffic” and RHT means “Right Hand Traffic,” referring to which side of the road a driver uses. Read more…

  Part NumberDescriptionSpecification Sheet
0554421 Part 0554421 12-24V ECE LED LHT High & Low Beam Heated Headlight with Chrome Inner BezelDownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, ECE Reg 112, ECE Reg 7, IEC IP69K
0554441 Part 0554441 12-24V ECE LED LHT High & Low Beam Heated Headlight with Black Inner BezelDownloadInquireAdd to Inquiry
  Complies with: Buy America Standards, ECE Reg 112, ECE Reg 7, IEC IP69K

Dimensions

LED Headlight Model 8910 Evolution 2 Dimensions
