LED Headlights – Model 6130 Evolution

4.75" Round LED Headlight

The Model 6130 Evolution offers a headlight upgrade for 4.75″ (PAR38) sealed beam headlights. The design incorporates advanced LED technology eliminating the hassle of an external driver and features a new, lower profile for an easier installation. The Model 6130 Evolution LED headlight uses high quality LEDs and engineered optics to produce maximum visibility for low beam, high beam and high/low beam options.

  • Lower profile for universal mount fitting a variety of applications.
  • Advanced LED technology eliminates the hassle of an external driver.



Applications
  • Agriculture
  • Construction
  • Mining
  • Off-Road 4x4
  • Power Sports
  • Specialty Vehicles
Made in USAThis product meets one or more European regulatory standards. Please see the specification sheet for more details.This product meets one or more FMVSS 108 standards, including DOT and Transport Canada requirements
Share this Product
Add to Inquiry What's this?

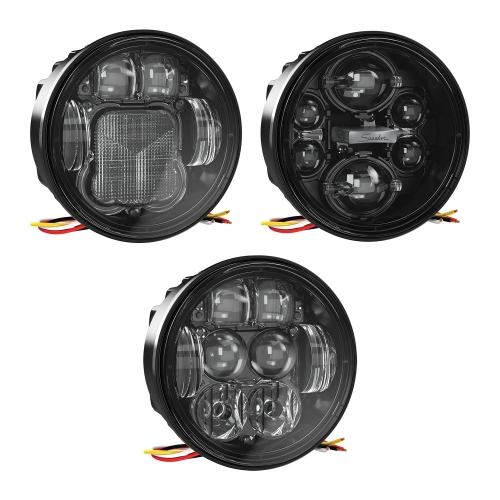

LED Headlight Model 6130 Evolution Combined View

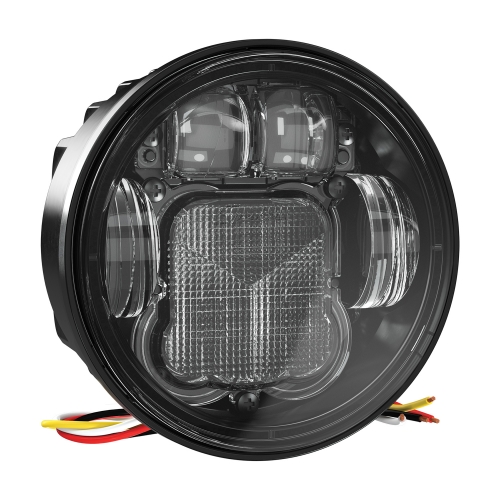

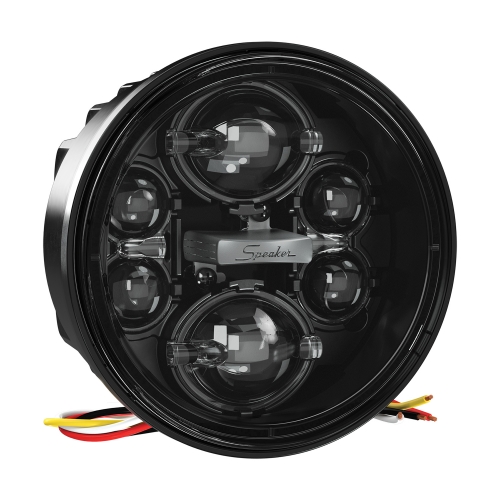

LED Headlight Model 6130 Evolution Combined View LED Headlight Model 6130 Evolution Low Beam Only 3/4 View LED Headlight Model 6130 Evolution High Beam Only 3/4 View LED Headlight Model 6130 Evolution High and Low Beam 3/4 View LED Headlight Model 6130 Evolution Low Beam Only Front View LED Headlight Model 6130 Evolution High Beam Only Front View LED Headlight Model 6130 Evolution High and Low Beam Front View LED Headlight Model 6130 Evolution Side View LED Headlight Model 6130 Evolution Back View

Part Number List

  Part NumberDescriptionSpecification Sheet
054988112-24V SAE/ECE LED RHT High & Low Beam HeadlightViewInquireAdd to Inquiry
  Complies with: Buy America Standards, ECE Reg 112, ECE Reg 7, FMVSS 108 Table XIX, FMVSS 108 Table XVIII, IEC IP67
054989112-24V ECE LED LHT High & Low Beam HeadlightViewInquireAdd to Inquiry
  Complies with: Buy America Standards, ECE Reg 112, ECE Reg 7, IEC IP67
054987112-24V SAE/ECE LED High Beam HeadlightViewInquireAdd to Inquiry
  Complies with: Buy America Standards, ECE Reg 112, ECE Reg 7, FMVSS 108 Table XVIII, IEC IP67
054985112-24V SAE/ECE LED RHT Low Beam HeadlightViewInquireAdd to Inquiry
  Complies with: Buy America Standards, ECE Reg 112, ECE Reg 87, FMVSS 108 Table XIX, IEC IP67
054986112-24V ECE LED LHT Low Beam HeadlightViewInquireAdd to Inquiry
  Complies with: Buy America Standards, ECE Reg 112, ECE Reg 87, IEC IP67

Dimensions

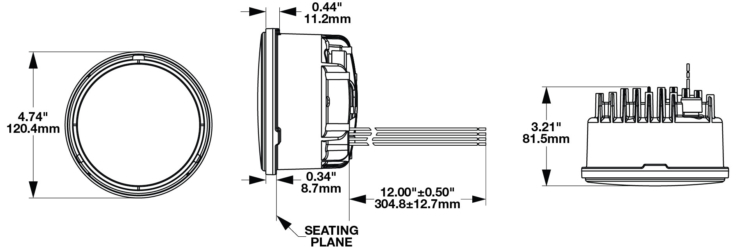

LED Headlight Model 6130 Evolution Dimensions
