LED Motorcycle Headlight – Model 93 M

Dual LED Headlight with Pedestal Mount

Overview:
The Model 93 M offers a dual-LED motorcycle headlight for your custom or Fat Bob bike. With a sleek profile and design and precise projector optics, this industry-leading technology will get you noticed, and the pedestal mount bracket lets you mount it anywhere a pedestal mount headlight will go.

Features:

  • Fits most pedestal mount locations
  • Dual Burn™ high and low beam optics for extra punch of light
  • Built-in front position light
  • Street-legal for use anywhere on the road
  • 4-pin Packard connector for plug and play installation on many bikes
  • Each headlight comes with two bracket options for a truly custom fit

Installation Instructions:
Find them under our Related Resources below.

Street legal supporting DOT & ECE standards:
DOT-compliance for legal on-road use requires that the Model 93 M high beam be used in conjunction with your stock headlights, turning off the high beam when faced with oncoming traffic. Your DOT-compliance is clearly etched on the lens of the light.

ECE-compliant guarantees your lights are compliant in the European Union and in non-European countries that have adopted ECE Regulations for visibility, durability, and reliability.

Summary:

Each Model 93 M kit features heavy-duty die-cast aluminum housing, a tough polycarbonate lens, and the latest in solid-state optics. Offering straightforward installation, The 4-pin Packard connector means that with a single click, you’re wired and getting back on the road.

These lights leverage our solid optic technology to deliver precise engineered beam patterns that are not only street-legal, they’re also more intense than stock lights to augment the headlight beam patterns. Say hello to brighter roads ahead with the Model 93 M LED Dual Burn headlight kit from J.W. Speaker!

Applications
  • Motorcycle
  • Power Sports
Made in USAThis product meets one or more European regulatory standards. Please see the specification sheet for more details.This product meets one or more FMVSS 108 standards, including DOT and Transport Canada requirementsThis product is sealed to completely protect against the entry of dust and high-pressure/high-temperature jets of water in any direction.
Share this Product
Specifications Dealer Locator
LED Motorcycle Headlight Model 93 M 3/4 View
LED Motorcycle Headlight Model 93 M 3/4 View LED Motorcycle Headlight Model 93 M Front View LED Motorcycle Headlight Model 93 M Side View LED Motorcycle Headlight Model 93 M Back View LED Motorcycle Headlight Fat Bob Model 93 M 3/4 View LED Motorcycle Headlight Fat Bob Model 93 M Front View LED Motorcycle Headlight Fat Bob Model 93 M Side View LED Motorcycle Headlight Fat Bob Model 93 M Back View

Part Number List

  Part NumberDescriptionPrice (U.S. only)Spec Sheet
0555911 Part 0555911 12-24V DOT/ECE LED High & Low Beam Headlight Kit with Black Inner BezelDownloadPDF
  Complies with: Buy America Standards, ECE Reg 112, ECE Reg 113, FMVSS 108 Table XVIII, FMVSS 108 Table XX, IEC IP67, IEC IP69K, Tested to ECE Reg. 10 (Radiated Emissions only)

Dimensions

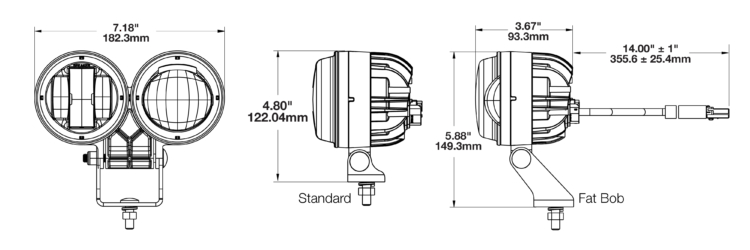

LED Motorcycle Headlight Model 93M Dimensions
