LED ATV and UTV Headlights – Model 8415 Evolution

4.5" Round LED ATV and UTV Headlights

Our Model 8415 has been updated to an Evolution Series solution, delivering even better performance with a new, lightweight yet durable platform.

Designed for OEMs and aftermarket customers alike, these powerful round LED headlights include a custom version that meets UL standards for industrial use.

  • High performance optics with increased high beam intensity
  • New high-impact, corrosion-resistant XENOY™ housing
  • Custom version with polycarbonate housing designed for industrial applications needing UL requirements
  • Improved thermal management using thermoplastic technology found in our XD work light series
  • Adjustable or fixed mounting options

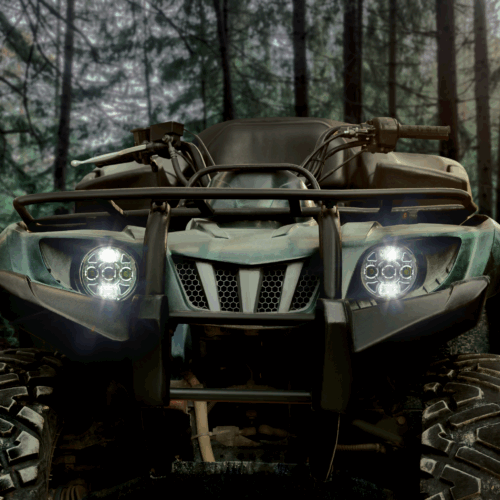

  • This new version was designed to retrofit ATV and snowmobile applications.
Applications
  • Construction
  • Industrial
  • Material Handling
  • Motorcycle
  • Off-Road 4x4
  • Powersports
  • Specialty Vehicles
  • Truck & Bus
This product meets one or more American Society of Agriculture and Biological Engineers regulatory standards. Please see the specification sheet for more details.Made in USAThis product meets one or more European regulatory standards. Please see the specification sheet for more details.This product is sealed to completely protect against the entry of dust and immersion in water up to a depth of 1 meter.This product meets one or more Society of Automotive Engineers regulatory standards.
Share this Product
Specifications Dealer Locator
LED Headlight Model 8415 Evolution Low Beam with Front Position Front View

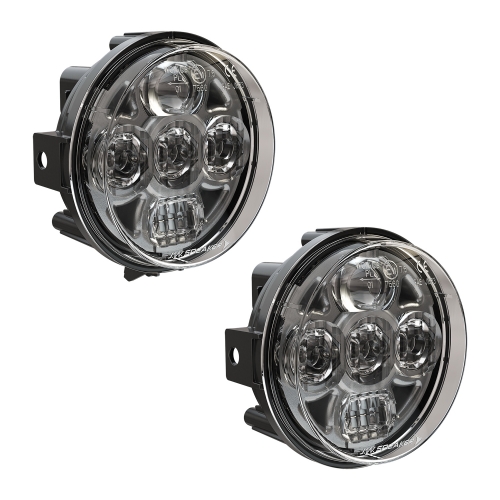

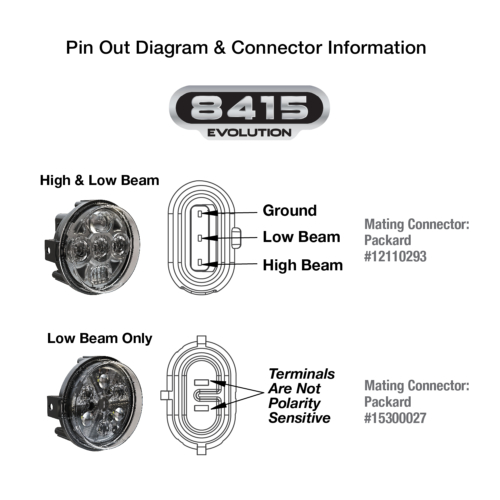

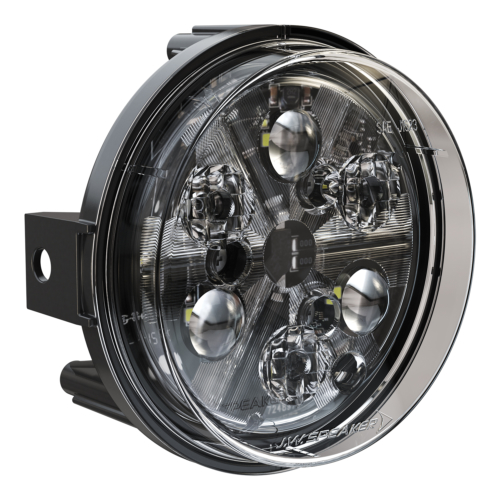

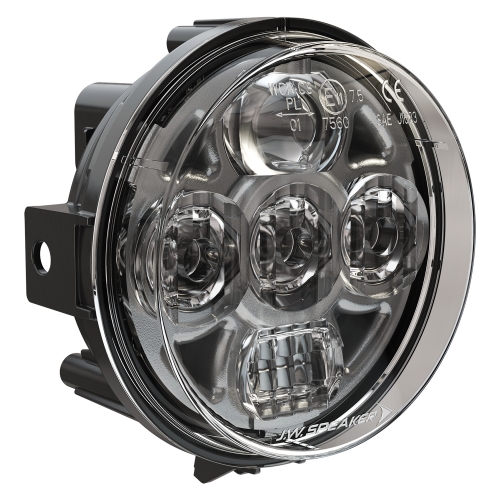

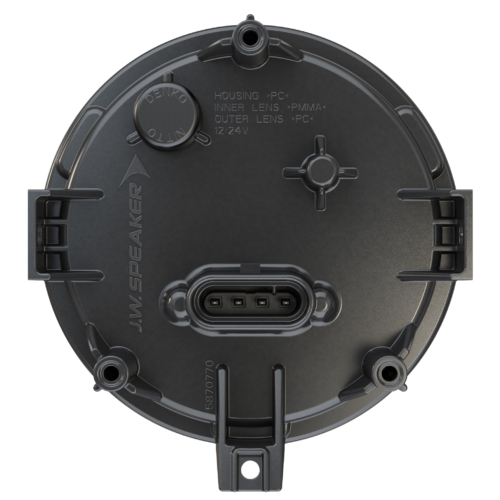

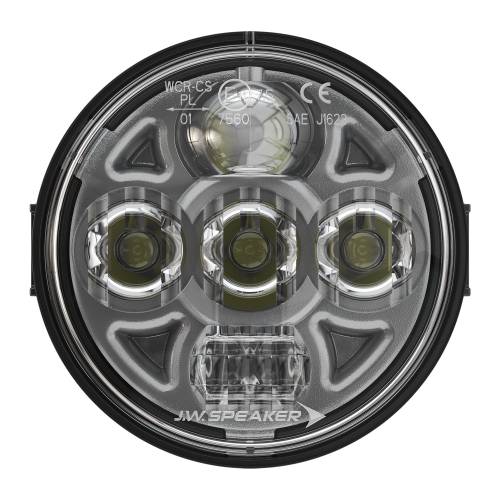

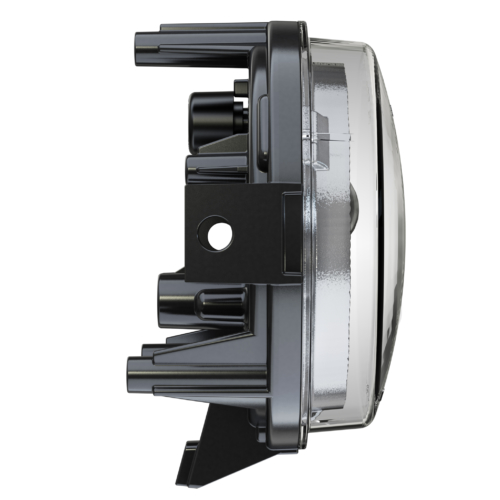

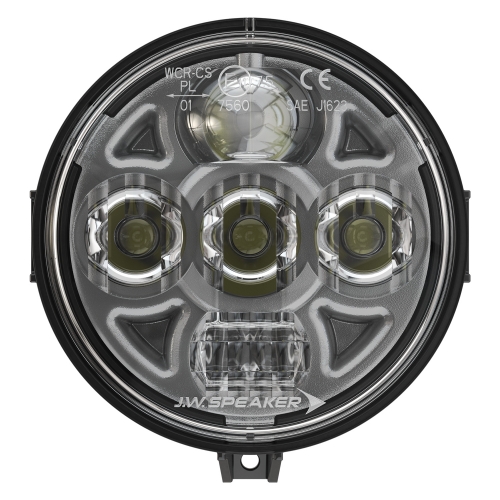

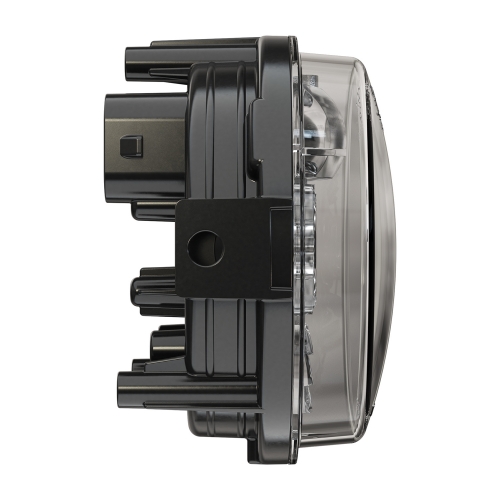

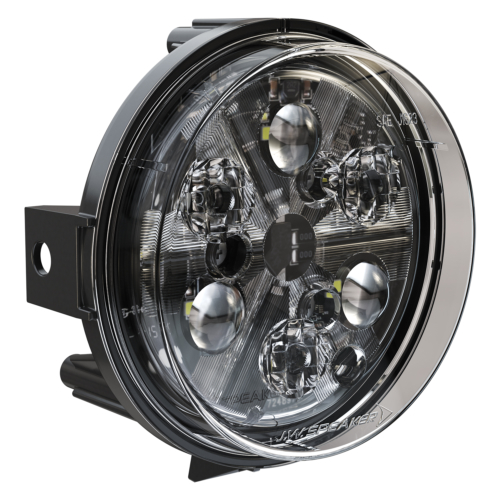

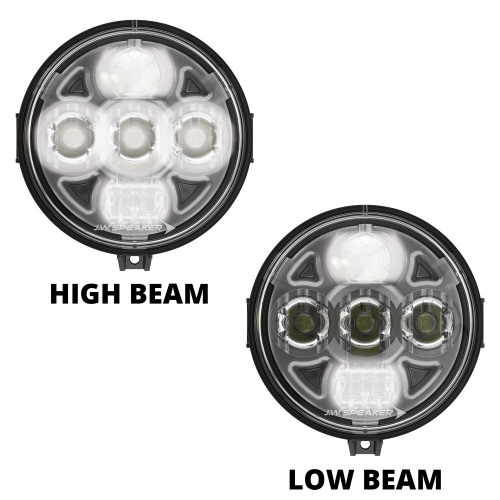

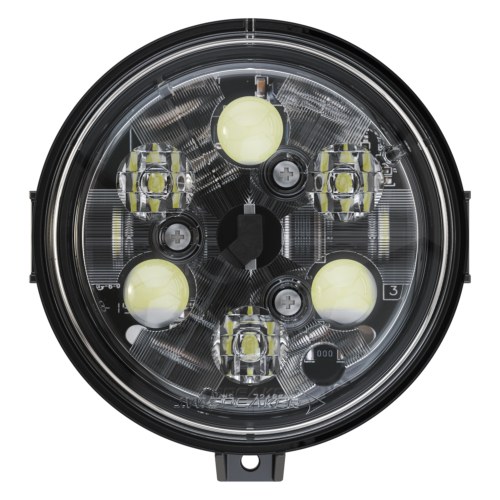

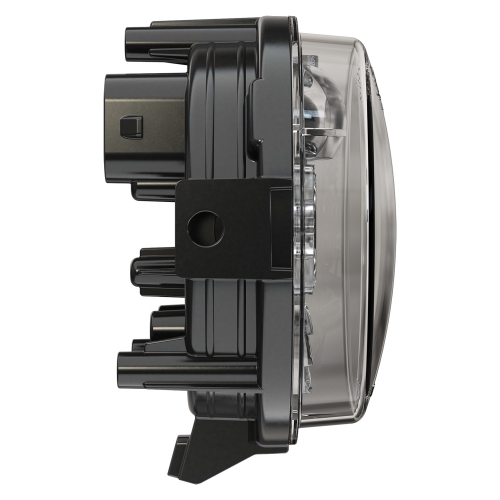

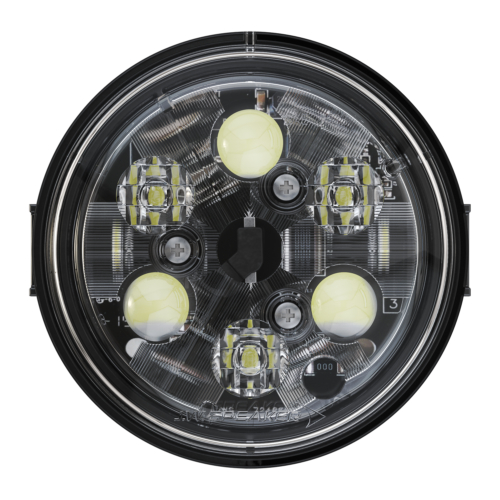

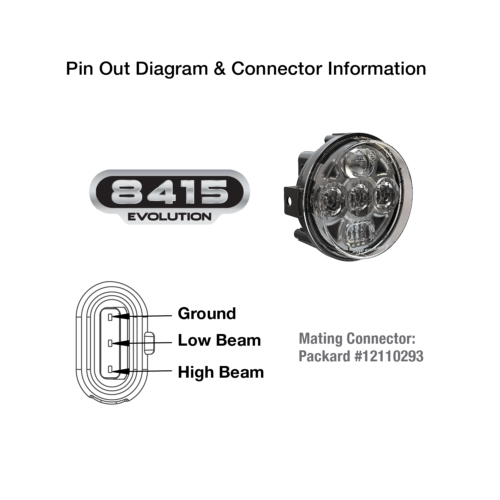

LED Headlight Model 8415 Evolution Low Beam with Front Position Front View LED Headlight Model 8415 Evolution Low Beam with Front Position 34 View LED Headlight Model 8415 Evolution Low Beam with Front Position Side View LED Headlight Model 8415 Evolution Low Beam with Front Position Back View LED Headlight Model 8415 Evolution LED Headlight Model 8415 Evolution Adjustable Mount 3/4 View LED Headlight Model 8415 Evolution Fixed Mount 3/4 View LED Headlight Model 8415 Evolution Low Beam Adjustable Mount 34 View 2019 LED Headlight Model 8415 Evolution Low Beam Fixed Panel Mount 34 View 2019 LED Headlight Model 8415 Evolution Adjustable Mount Front View LED Headlight Model 8415 Evolution Fixed Mount Front View LED Headlight Model 8415 Evolution Low Beam Fixed Panel Mount Front View 2019 LED Headlight Model 8415 Evolution Low Beam Adjustable Mount Front View 2019 LED Headlight Model 8415 Evolution Adjustable Mount Side View LED Headlight Model 8415 Evolution Fixed Mount Side View LED Headlight Model 8415 Evolution Optics LED Headlight Model 8415 Evolution Pin Out Diagram & Connector Information LED Headlight Model 8415 Evolution Pin Out Diagram & Connector Information
For California residents:
⚠️ WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov.
⚠️ AVERTISSEMENT: Cancer et effet nocif sur la reproduction - www.P65Warnings.ca.gov.

Part Number List

  Part NumberDescriptionPrice (U.S. only)Spec Sheet
0551191 Part 0551191 12-24V SAE/ECE LED High/Low Beam Light with Xenoy Housing & Adjustable MountDownloadPDF
  Complies with: ASABE S608, Buy America Standards, ECE Reg 113, IEC IP67, SAE J1623, SAE J2258
0551761 Part 0551761 12-24V SAE/ECE LED High/Low Beam Light with Xenoy Housing & Fixed Panel MountDownloadPDF
  Complies with: ASABE S608, Buy America Standards, ECE Reg 113, IEC IP67, SAE J1623, SAE J2258
0552031 Part 0552031 12-24V SAE/ECE LED High/Low Beam Light with Polycarbonate Housing & Adjustable Mount - UL VersionDownloadPDF
  Complies with: ASABE S608, Buy America Standards, ECE Reg 113, IEC IP67, SAE J1623, SAE J2258, UL Recognized
0556421 Part 0556421 12-24V SAE LED Low Beam ATV Headlight with Fixed Panel MountDownloadPDF
  Complies with: ASABE S608, IEC IP67, SAE J1113-13, SAE J1113-21, SAE J1113-4, SAE J1623, SAE J2258, Tested to ECE Reg. 10 (Radiated Emissions only)
0556431 Part 0556431 12-24V SAE LED Low Beam ATV Headlight with Adjustable MountDownloadPDF
  Complies with: ASABE S608, Buy America Standards, IEC IP67, SAE J1113-13, SAE J1113-21, SAE J1113-4, SAE J1623, SAE J2258, Tested to ECE Reg. 10 (Radiated Emissions only)
0558361 Part 0558361 12-24V DOT LED Low Beam/Front Position Headlight w/ Built in Turn Signal & Adjustable MountDownloadPDF
